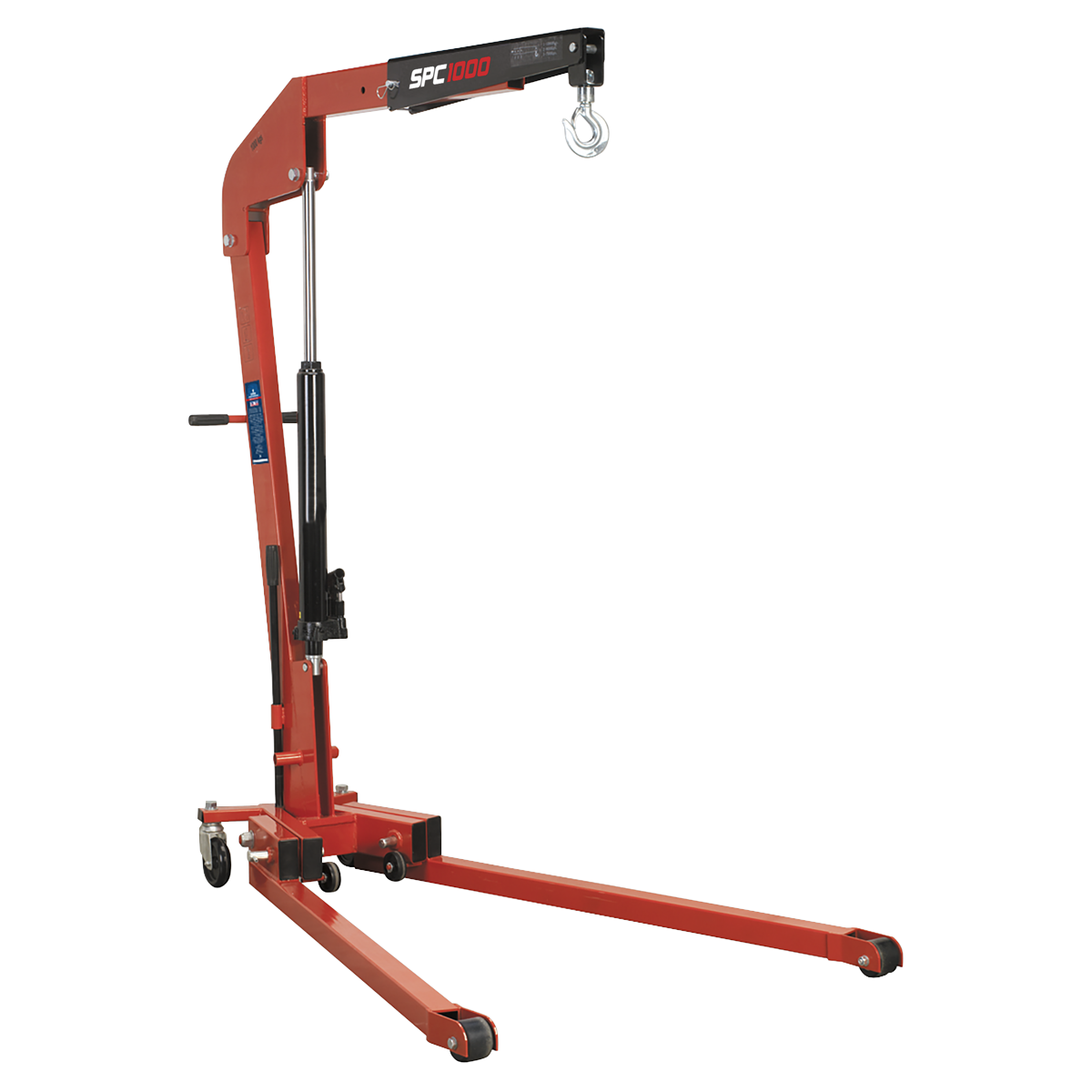

Premier SPC1000 Folding Engine Crane 1 Tonne

Folding crane with heavy-duty forged hook. Low profile with a height of only 80mm at the wheels. Fast folding for easy storage and transportation. Weighs 124kg and is perfect for professional workshop use. Beam can be set in three positions, allowing a lifting capacity from 700kg to 1000kg. Features 300° rotating pump handle to aid use where space is limited.

• 1 Tonne Folding crane with heavy-duty forged hook.

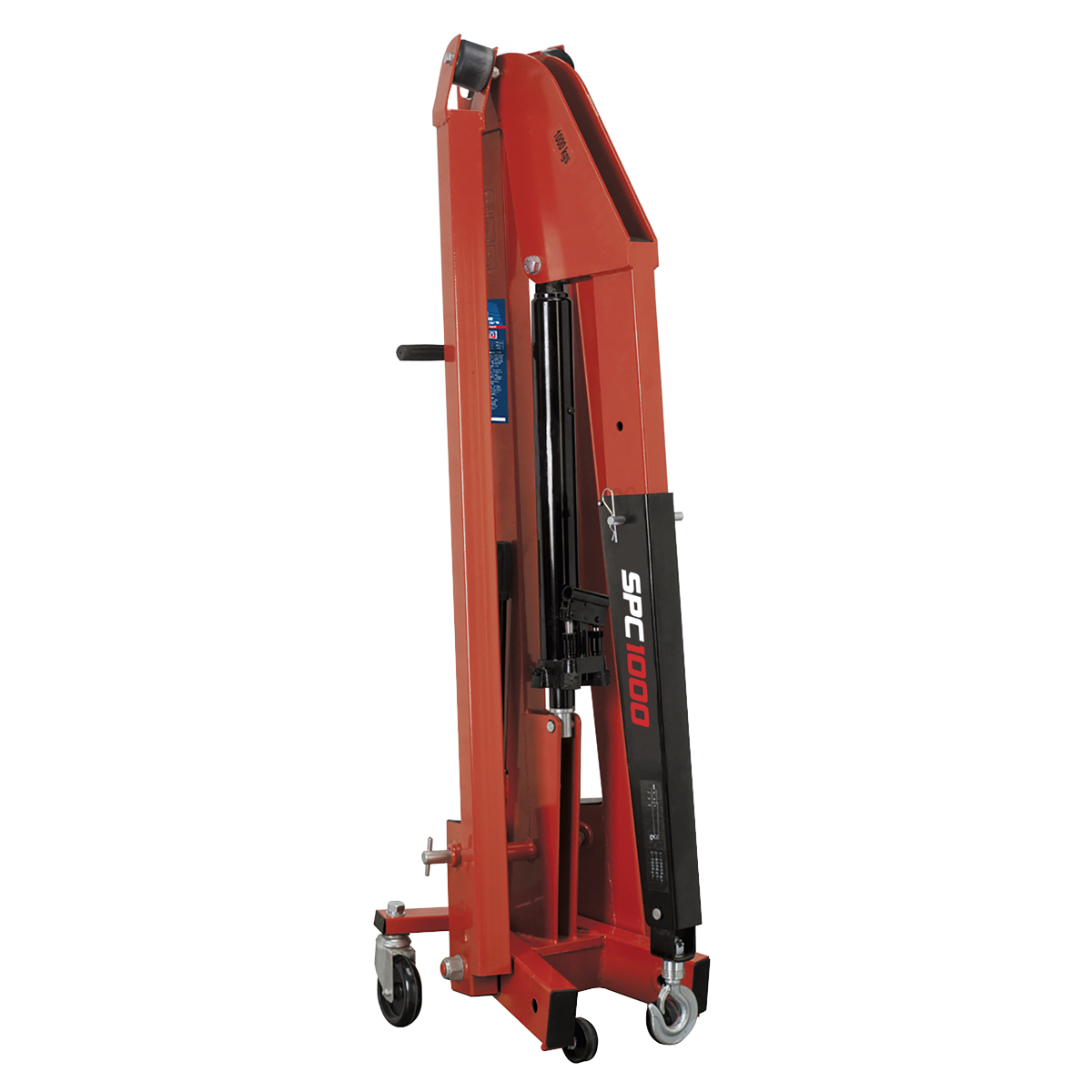

• Fast folding for easy storage and transportation.
• Low profile with a height of only 80mm at the wheels.
• Weighs 124kg and is perfect for professional workshop use.
• Beam can be set in three positions, allowing a lifting capacity from 700kg to 1000kg.

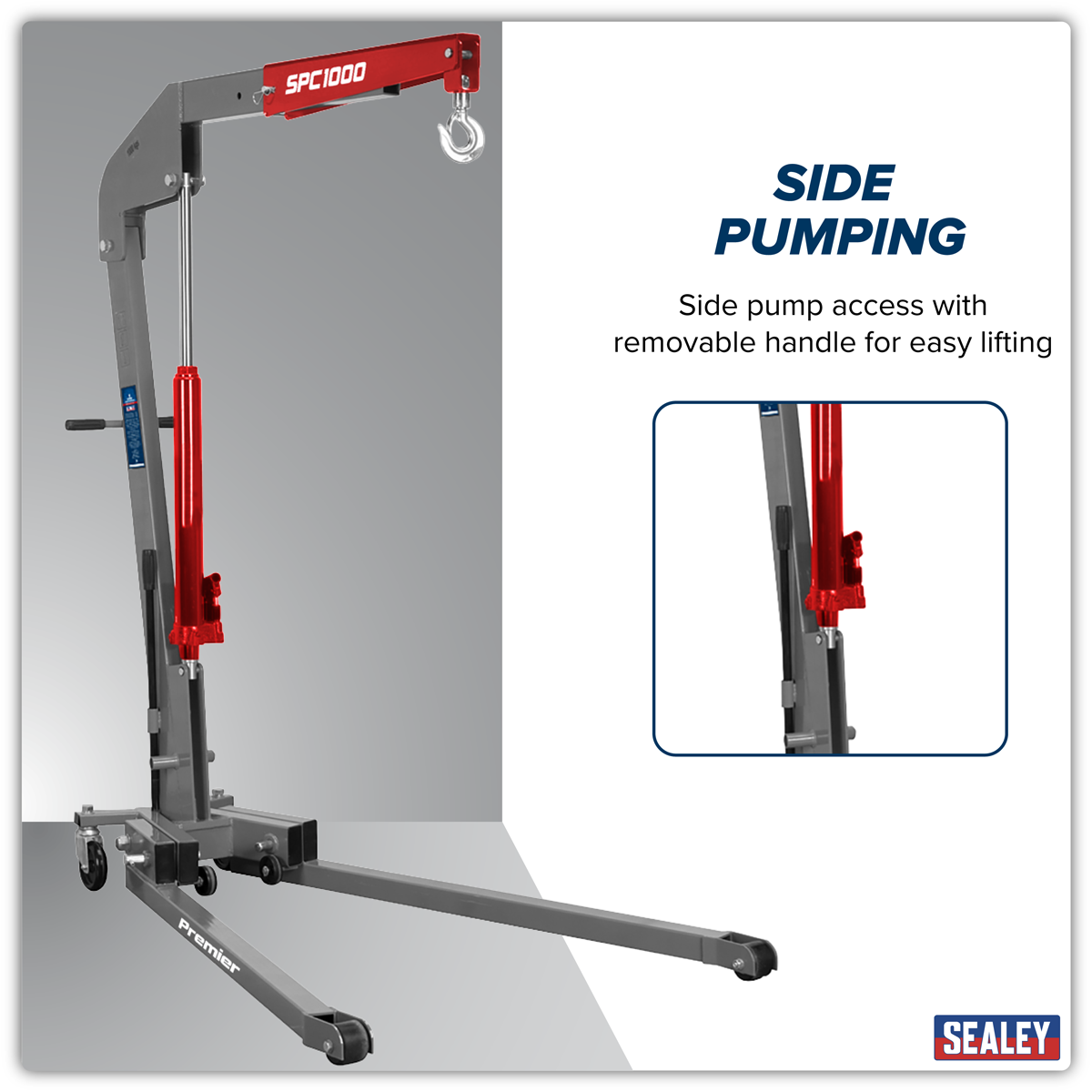

• 300° Rotating pump handle aids use where space is limited.
• 3 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specifications

Model No	SPC1000
Brand:	Premier
Height Jib Down:	1665mm
Height Legs Folded:	1680mm
Height of Frame:	80mm
Length Legs Extended:	n/a
Length of Jib Position 1:	1280mm
Length of Jib Position 2:	1430mm
Length of Jib Position 3:	1576mm
Length of Jib Position 4:	n/a
Length of Jib Position 5:	n/a
Length:	1750mm
Lifting Capacity in Position 1:	1000kg
Lifting Capacity in Position 2:	800kg
Lifting Capacity in Position 3:	700kg
Lifting Capacity in Position 4:	n/a
Lifting Capacity in Position 5:	n/a
Max. Lift Ht at Jib Position 1:	2380mm
Max. Lift Ht at Jib Position 2:	2465mm
Max. Lift Ht at Jib Position 3:	2550mm
Max. Lift Ht at Jib Position 4:	n/a
Max. Lift Ht at Jib Position 5:	n/a
Nett Weight:	124kg
Rear Width:	435mm
Width Front Frame:	1065mm
Width Inside Front Frame:	930mm

Documents

Instructions	View/Download
Material Safety Data Sheet	View/Download
Parts Diagrams	View/Download
