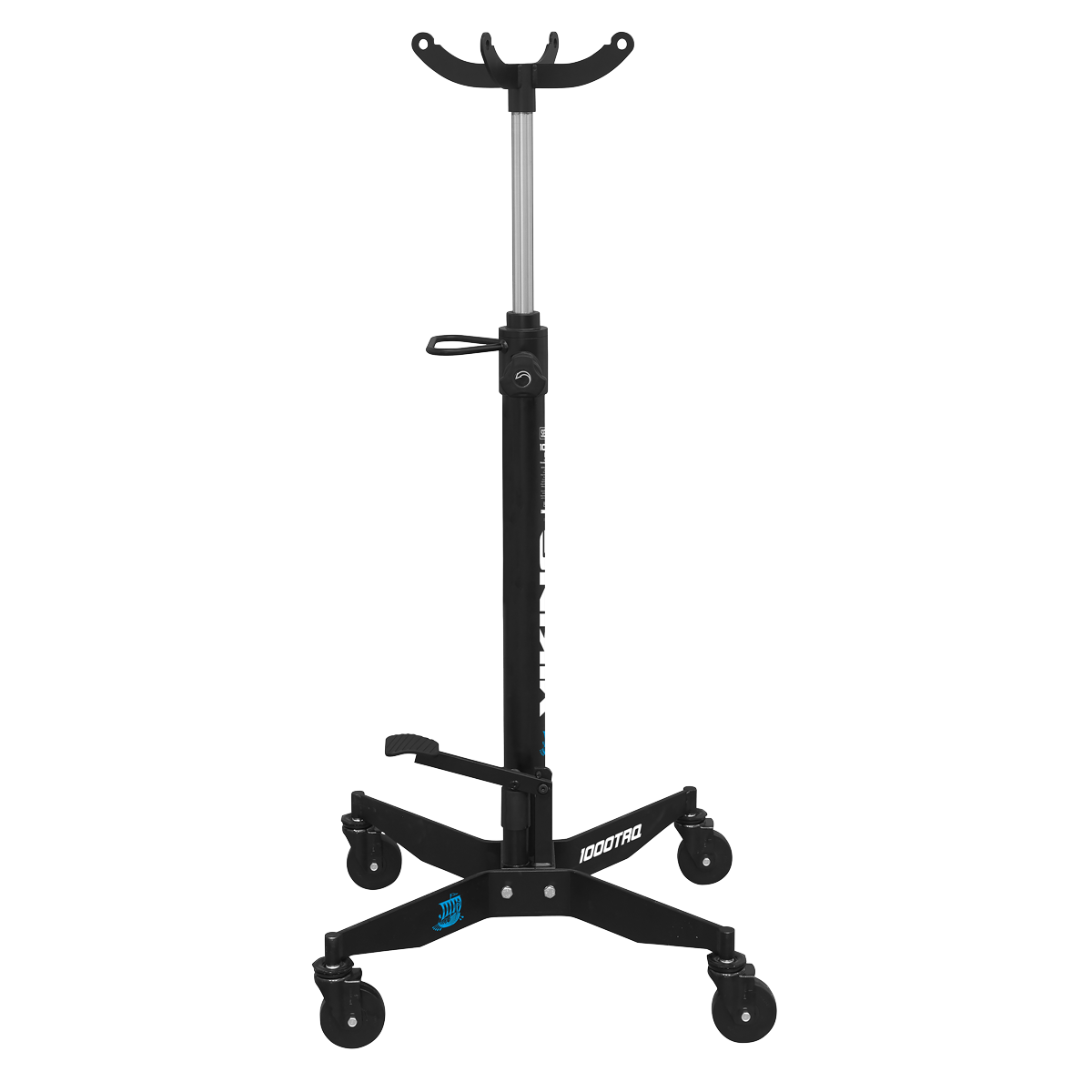

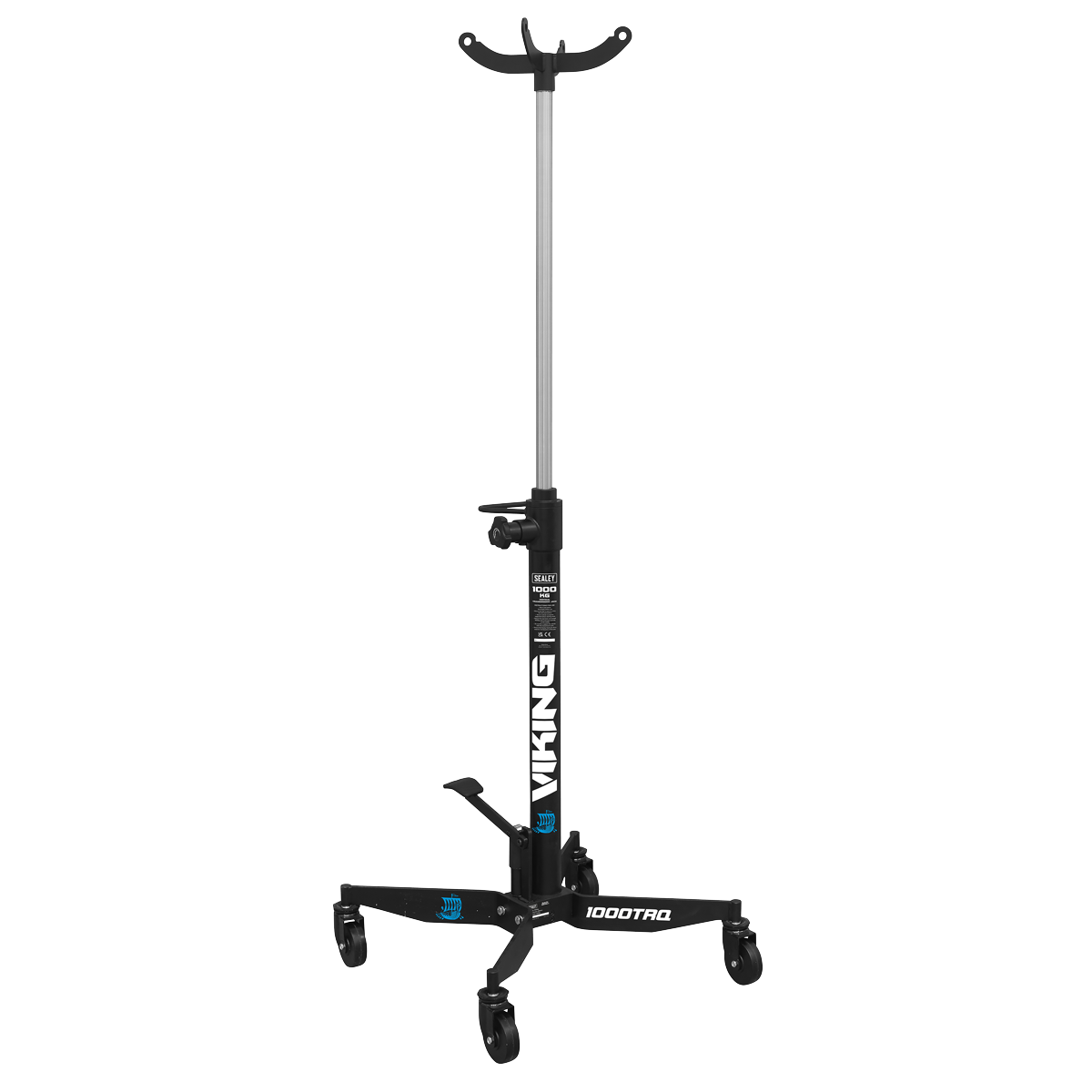

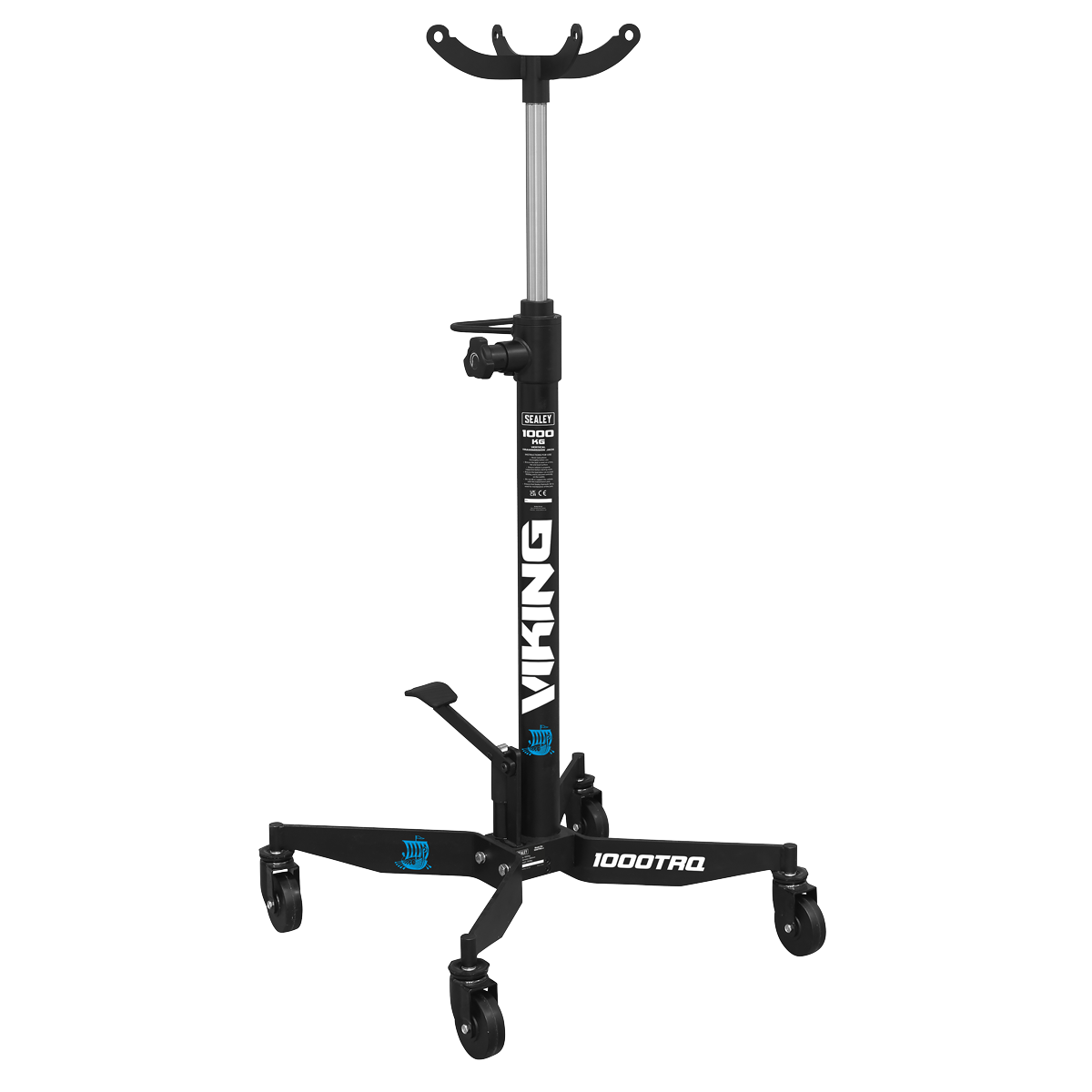

Sealey 1000TRQ Premier Vertical Quick Lift Transmission Jack 1 Tonne

This transmission jack features Quick Lift to reduce the time and effort needed to get saddle to gearbox. Single foot pedal operation keeps hands-free during lifting process. Spring loaded dead man's safety release control reduces the risk of inadvertent lowering. 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load. Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions. Castors and side handle make the unit easily manoeuvrable. Hydraulic unit larger than the economy models for improved performance and durability. Can be fitted with optional Adjustable Gearbox Support - Model No. ADT3.

• QUICK LIFT - reduced time and effort needed to get saddle to gearbox, only a maximum of 28 pumps needed to reach full height.
• CONVENIENT - Single foot pedal operation keeps hands-free during lifting process.
• SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
• CONTROLLED - 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.
• HEAVY DUTY - Hydraulic unit larger than the economy models for improved performance and durability.
• UNIVERSAL - Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions.
• MANEUVERABLE - Castors and side handle make the units easily positioned.
• SUITABLE - for use with optional Adjustable Gearbox Support - Model No. ADT3.
• 3 YEAR GUARANTEE*.

Specifications

Model No	1000TRQ
Base Size:	660 x 620mm
Brand:	Sealey
Capacity:	1000kg
Fixed/Adjustable Saddle:	Fixed
Maximum Saddle Height:	2010mm
Minimum Saddle Height:	1165mm
Nett Weight:	39.80kg
Pump Strokes to Maximum Height:	28
Ram Extensions:	840mm
