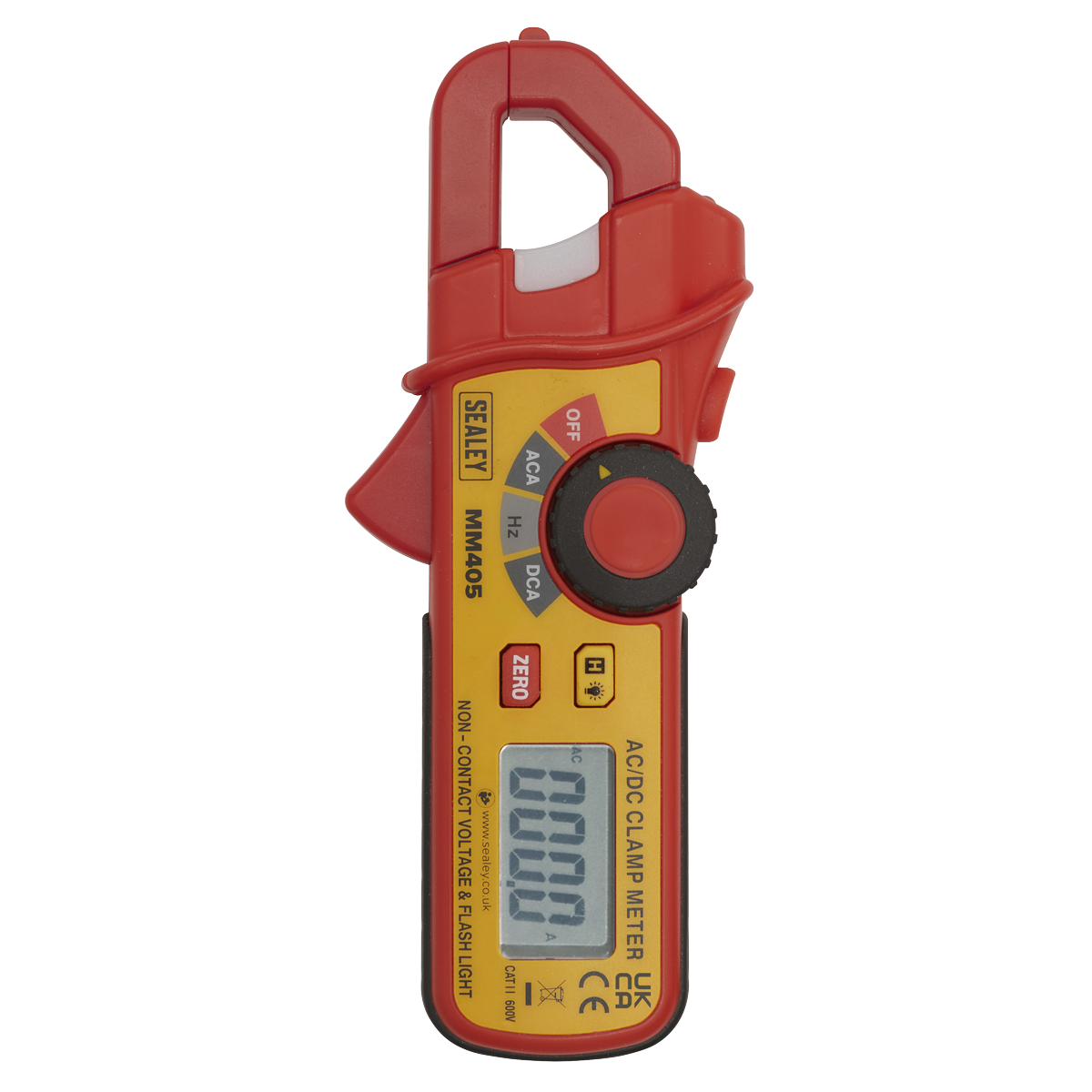

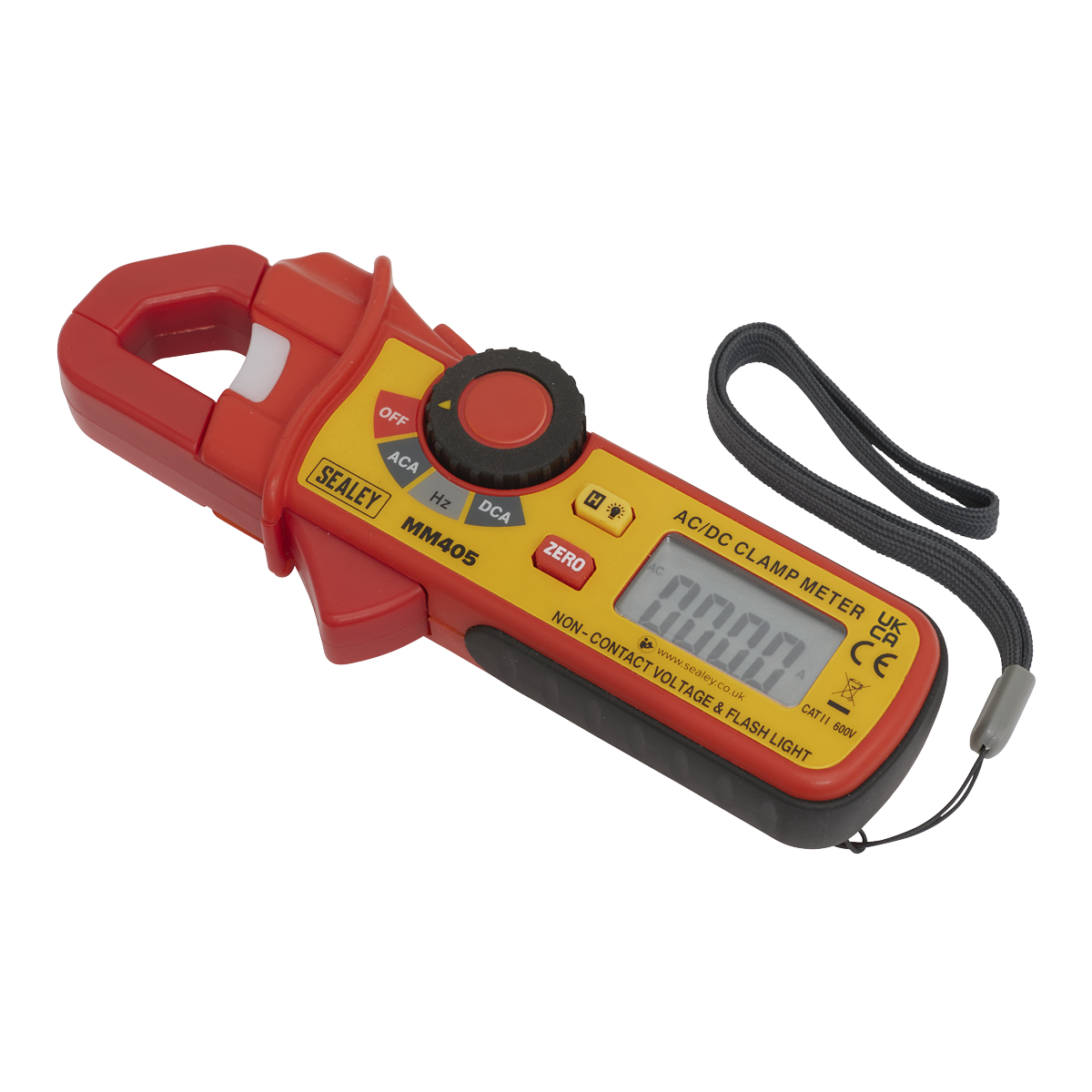

Sealey MM405 Mini AC/DC Clamp Meter

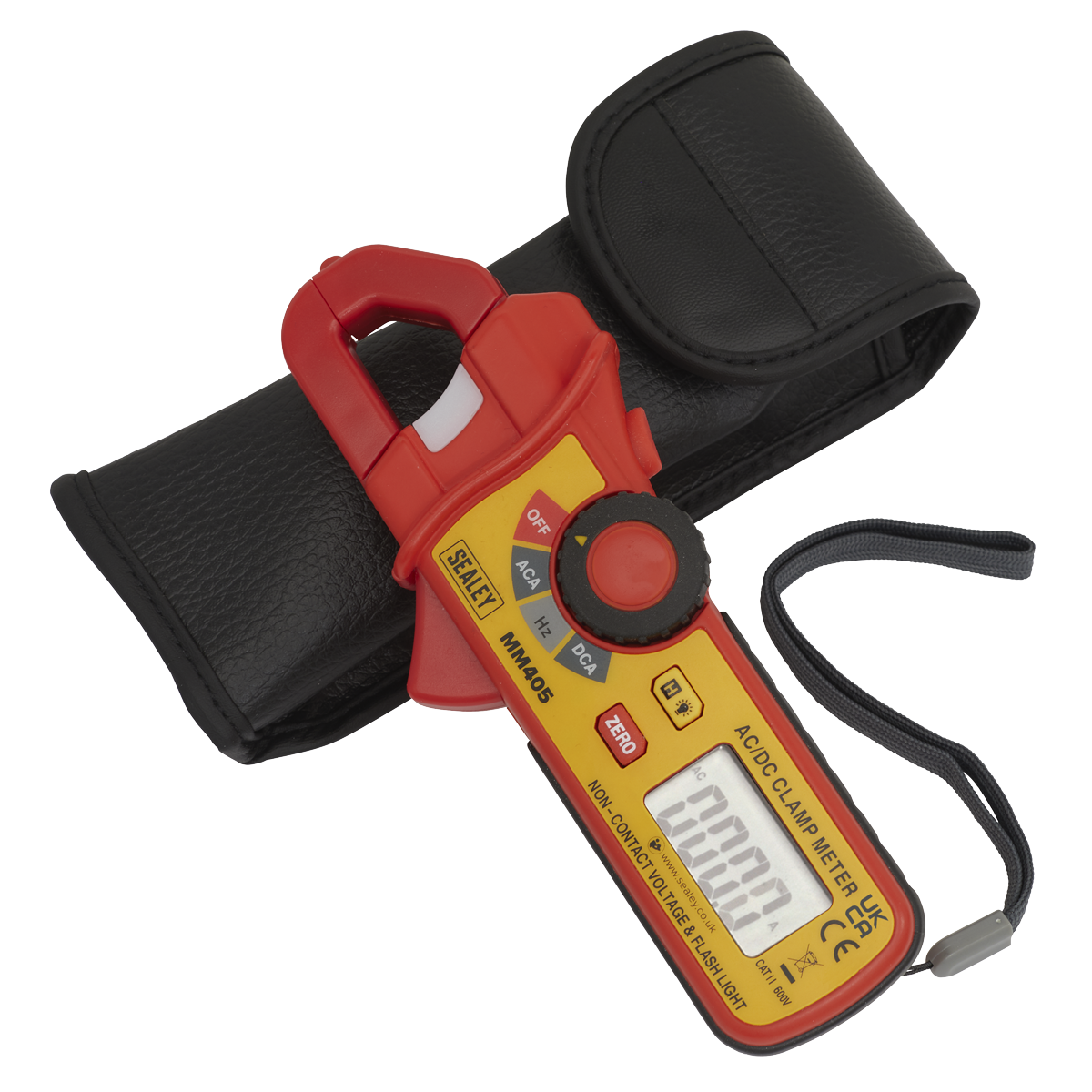

Durable composite housing with rubber grip around handle for comfort and control. Designed to verify the presence of AC and DC current and with non-contact voltage detection with flashlight and non-contact frequency measurement. Perfect for the automotive electrician. Features 18mm clamp, a backlit LCD display and an LED light at the front of the unit for use when working in dark areas. Supplied with storage case.

Measures:
• AC and DC Current
• Frequency
• Non-Contact Voltage Detection (NCVD)

• Durable composite housing with rubber grip around handle for comfort and control.
• Designed to verify the presence of AC and DC current and with non-contact voltage detection with flashlight and non-contact frequency measurement.
• Perfect for the automotive electrician.

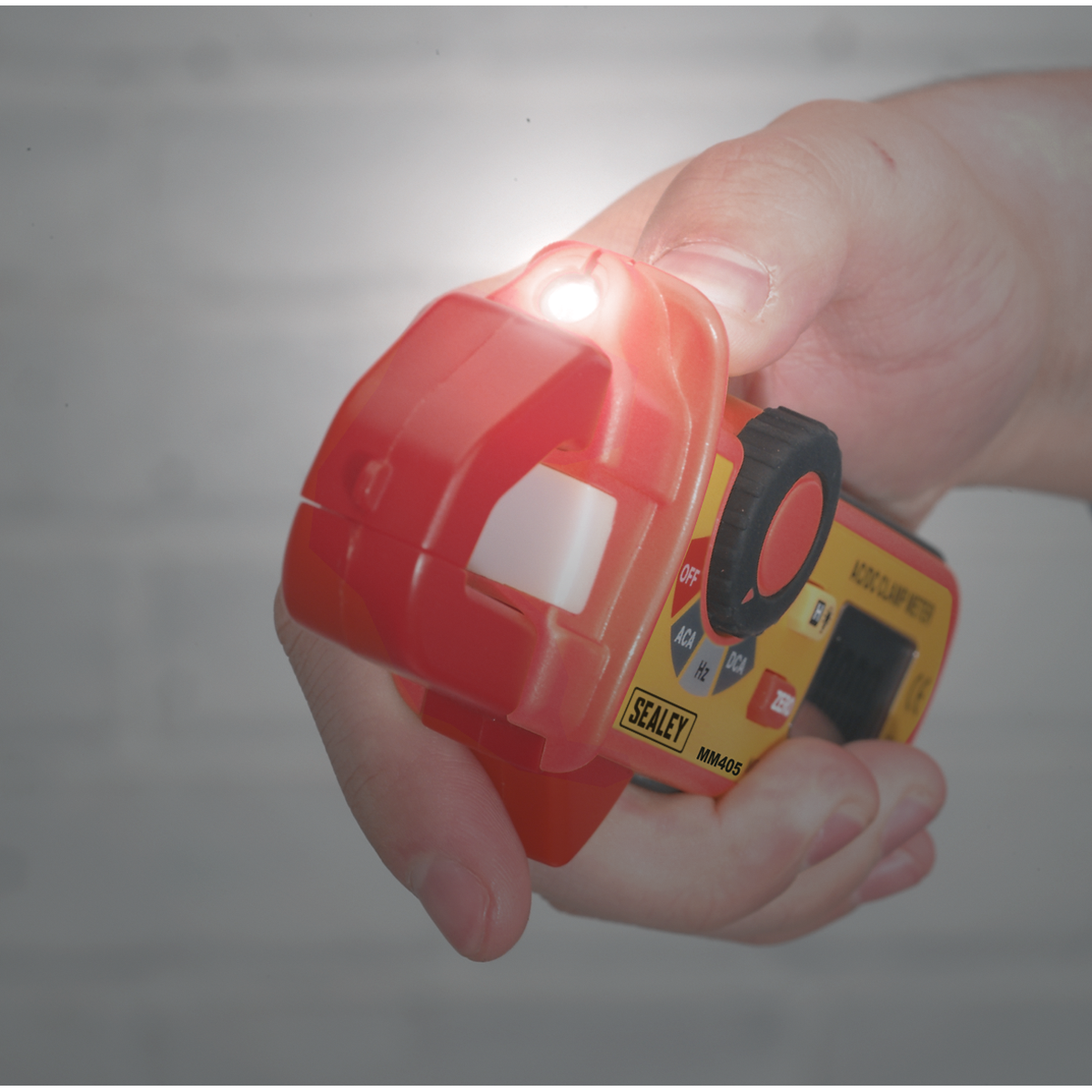

• Features 18mm clamp, a backlit LCD display and an LED light at the front of the unit for use when working in dark areas.
• Supplied with storage case.

• Measures:
- AC and DC Current
- Frequency.

Specifications

Model No	MM405
Brand:	Sealey
Nett Weight:	160g
AC Voltage (Accuracy):	No
DC Voltage (Accuracy):	No
AC Current (Accuracy):	0-200A (±3%)
DC Current (Accuracy):	0-200A (±2.8%)
Resistance (Accuracy):	No
Capacitance (Accuracy):	No
Temperature (Accuracy):	No
Frequency (Accuracy):	40-51, 51-510Hz, 0.51-1kHz (all ±1.2%)
Duty Cycle:	No
Continuity Audible:	No
Diode Test:	No
Transistor Test:	No
Hi-Impact Rubber Case:	No
Digits x Height:	4 x 11mm
Low Battery Indicator:	Yes
Battery (Supplied):	2 x 1.5V
Jaw Opening:	18mm
Information:	Non-Contact Voltage Detection (NCVD); 100 to 600V AC, Soft Padded Storage Case
Size (L x W x D):	155 x 66 x 31mm
Weight:	160g
Conformity:	IEC 1010

Documents

Material Safety Data Sheet	View/Download
Instructions	View/Download
