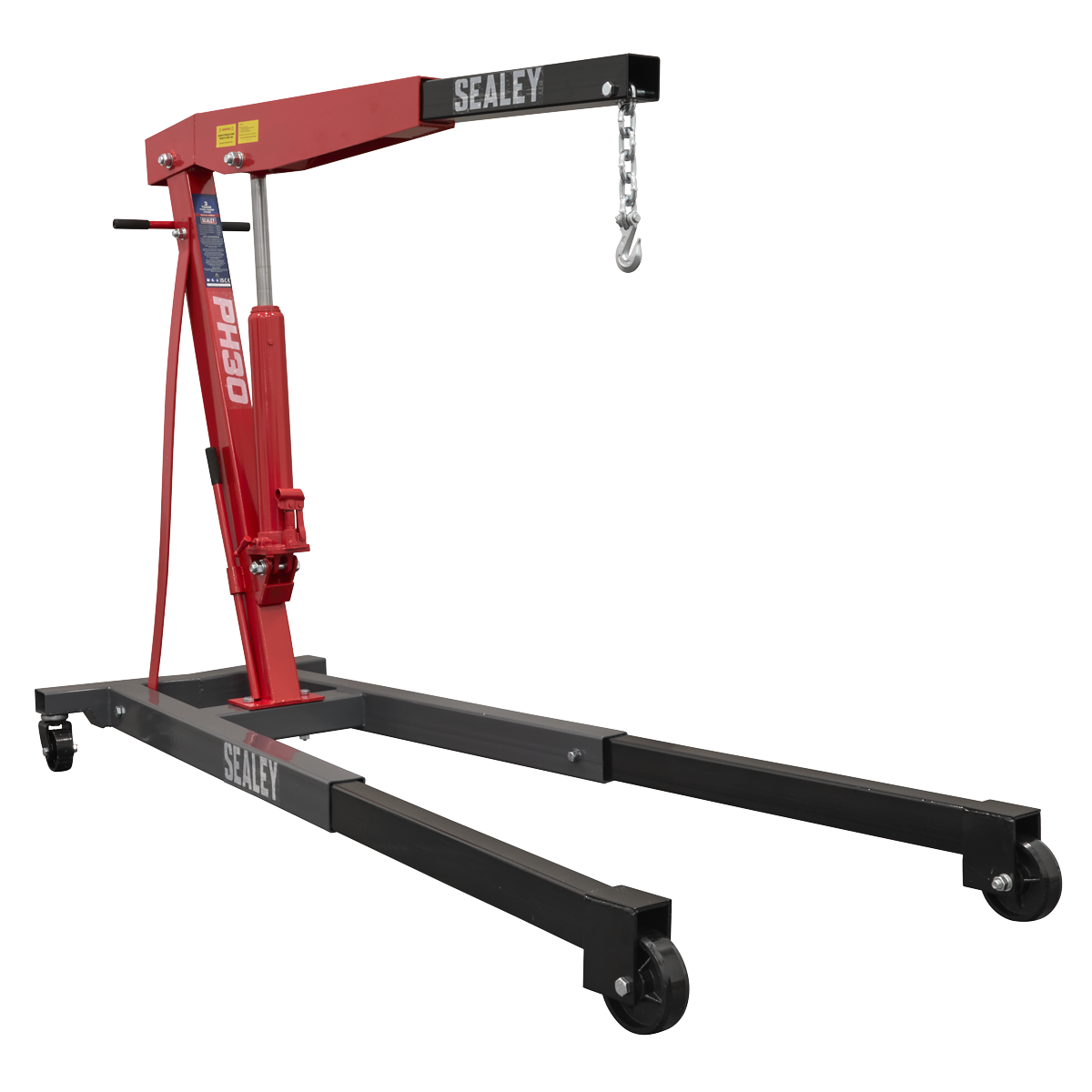

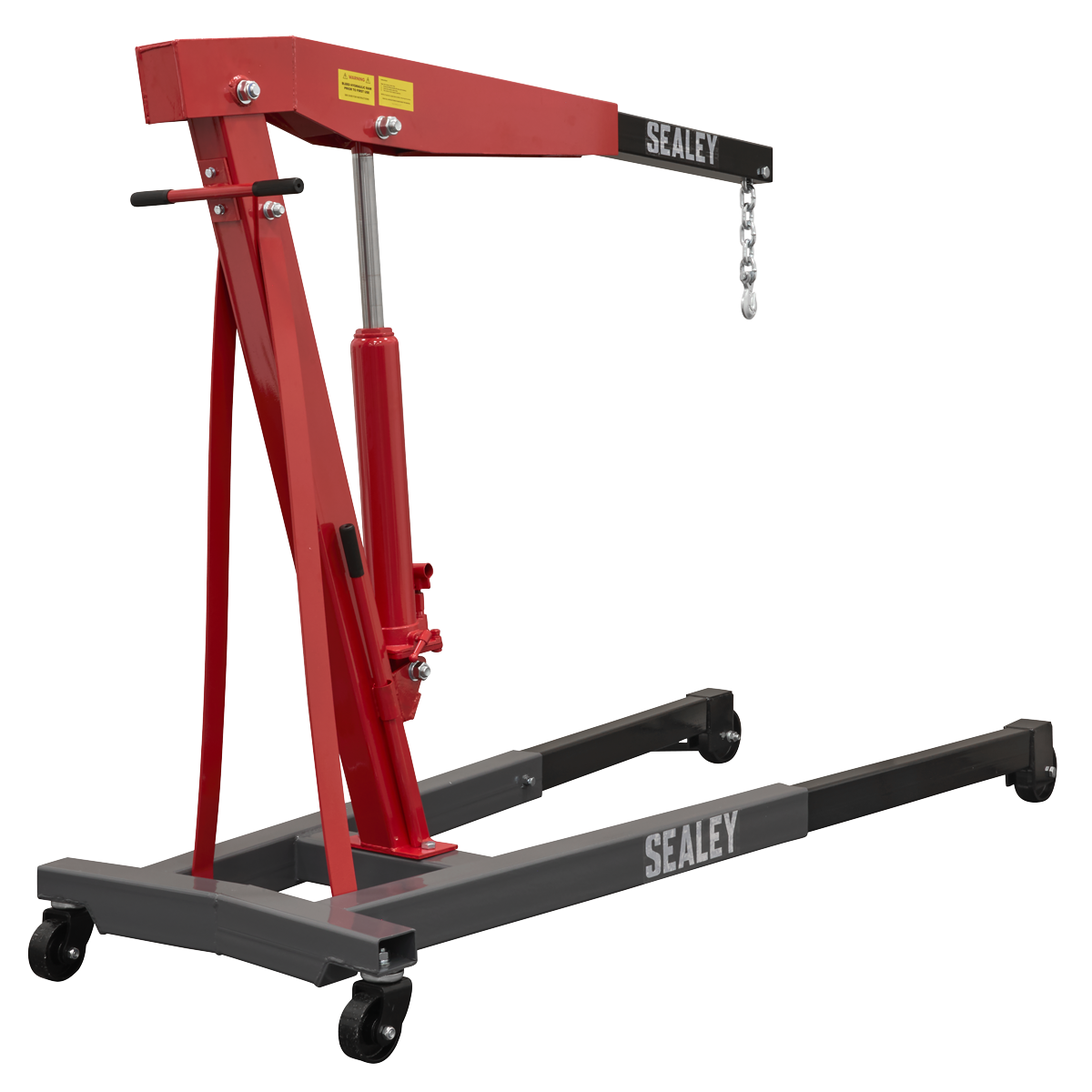

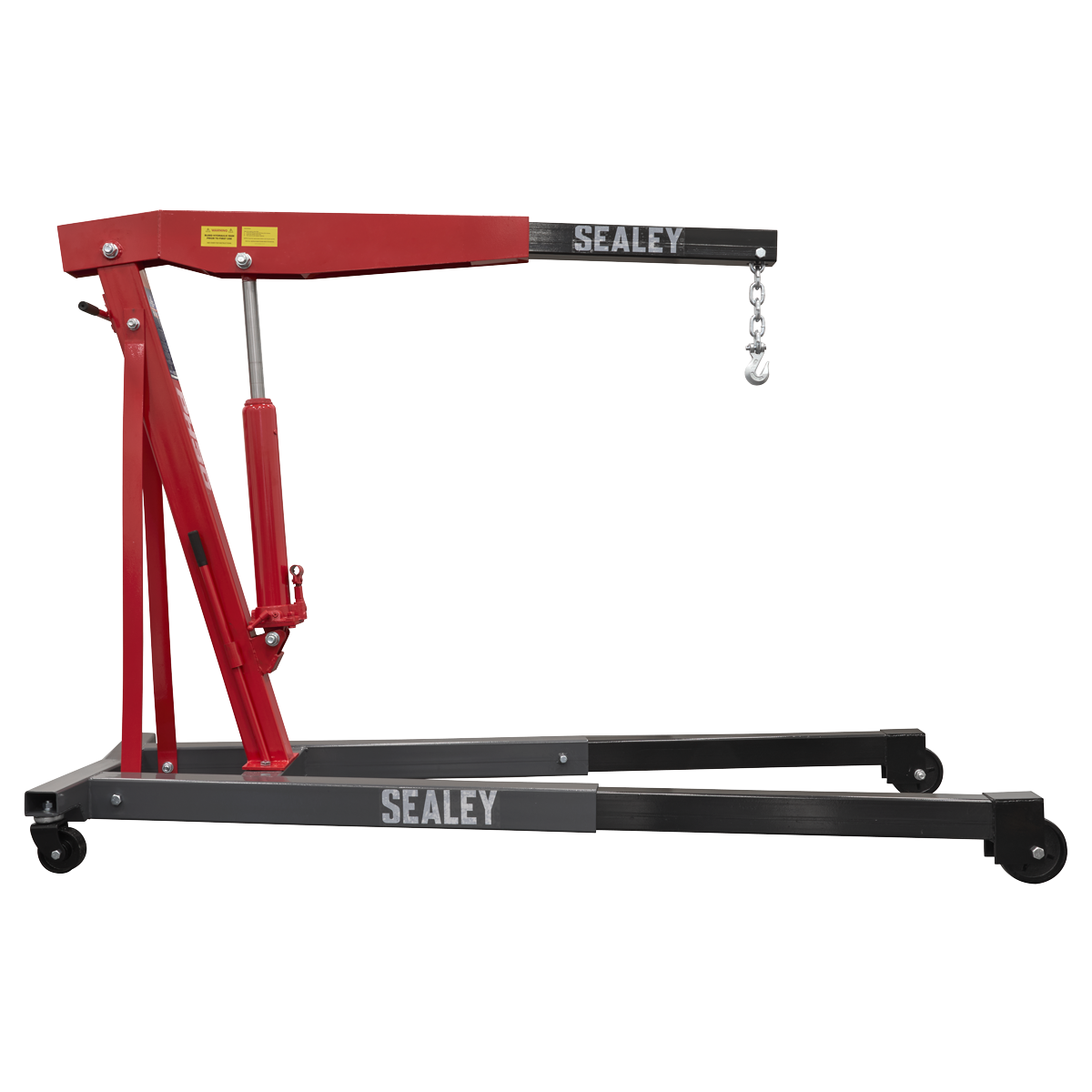

Sealey PH30 Fixed Frame Engine Crane with Extendable Legs 3 Tonne

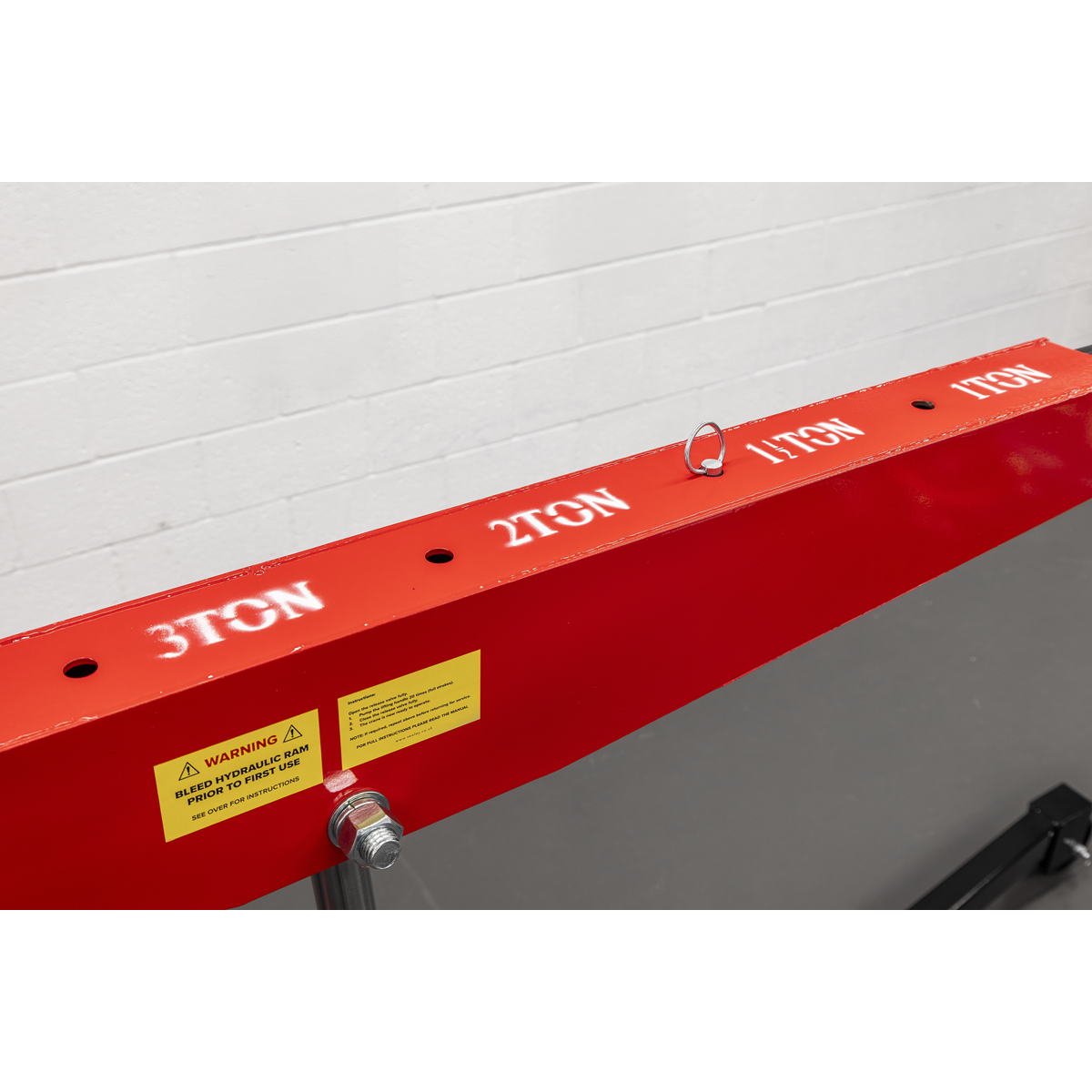

Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension of 1820mm. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.

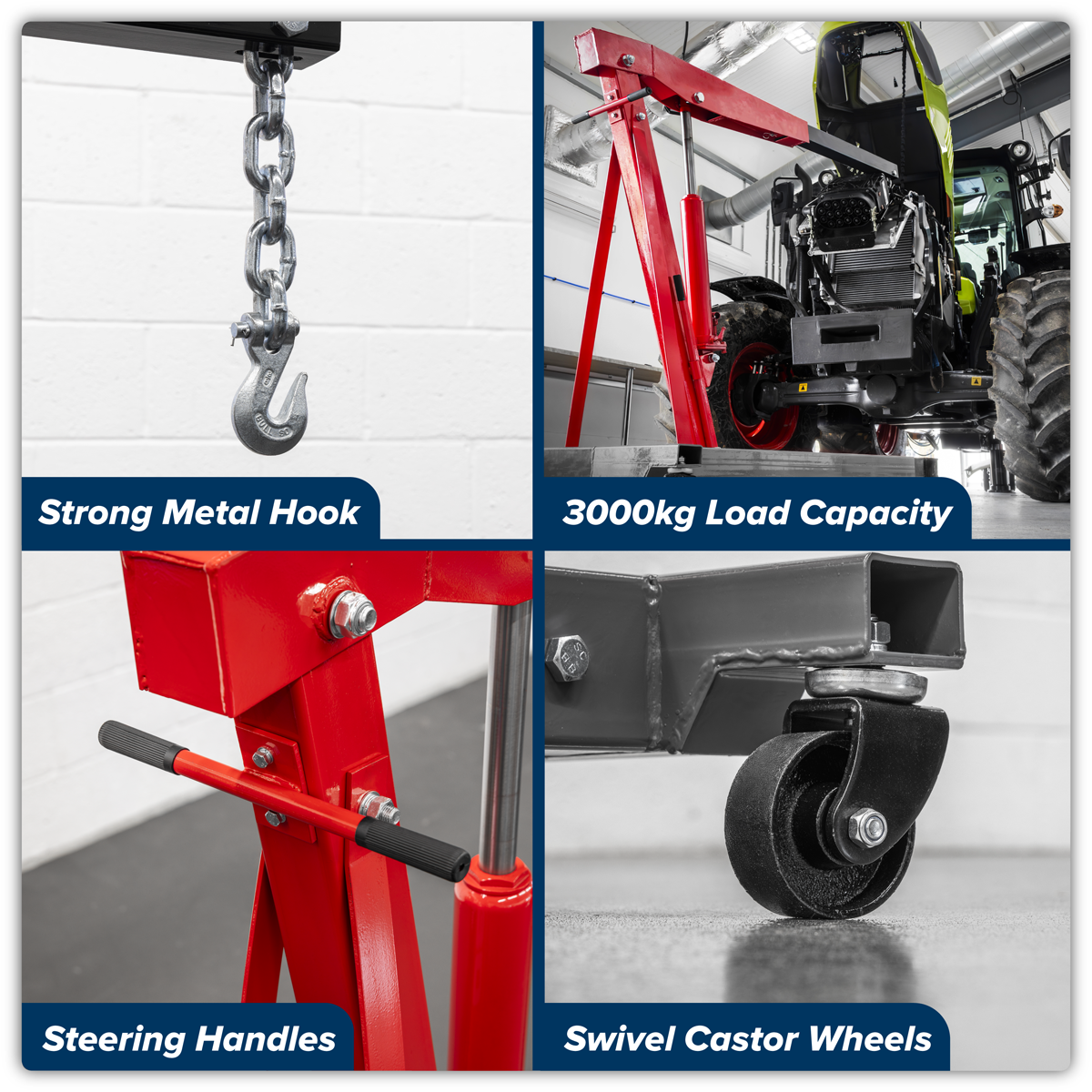

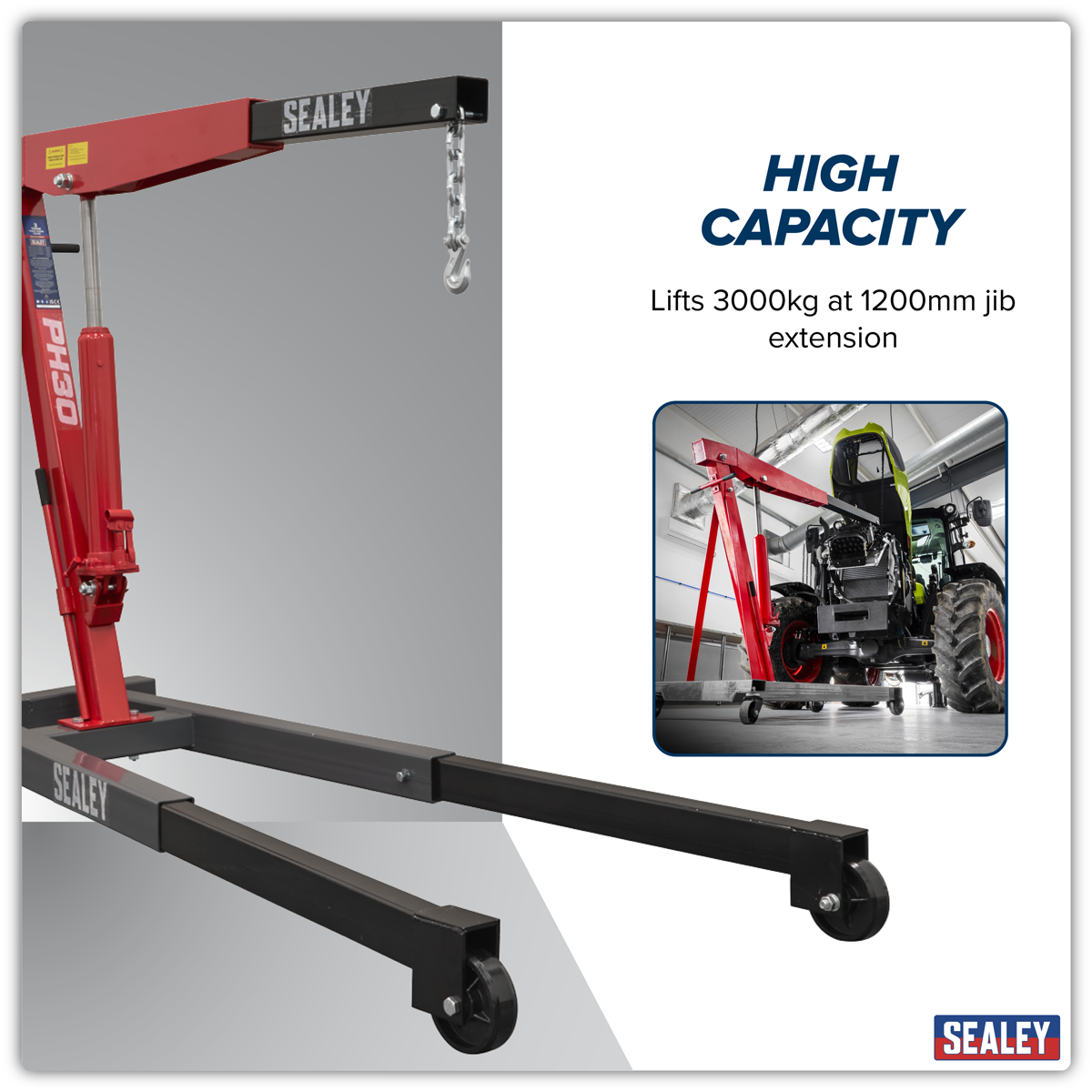

• HIGH CAPACITY - Lifts 3000kg at 1200mm jib extension.

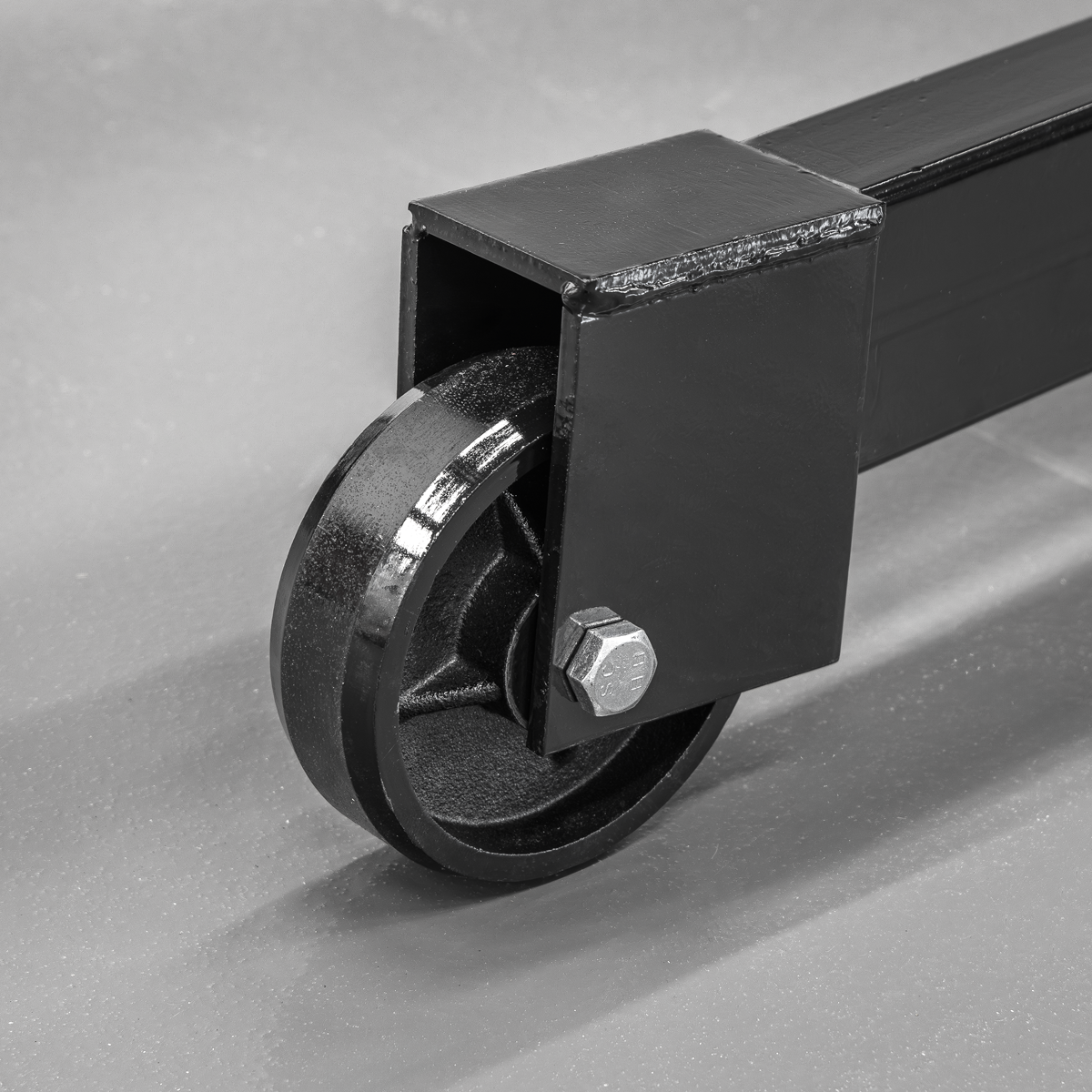

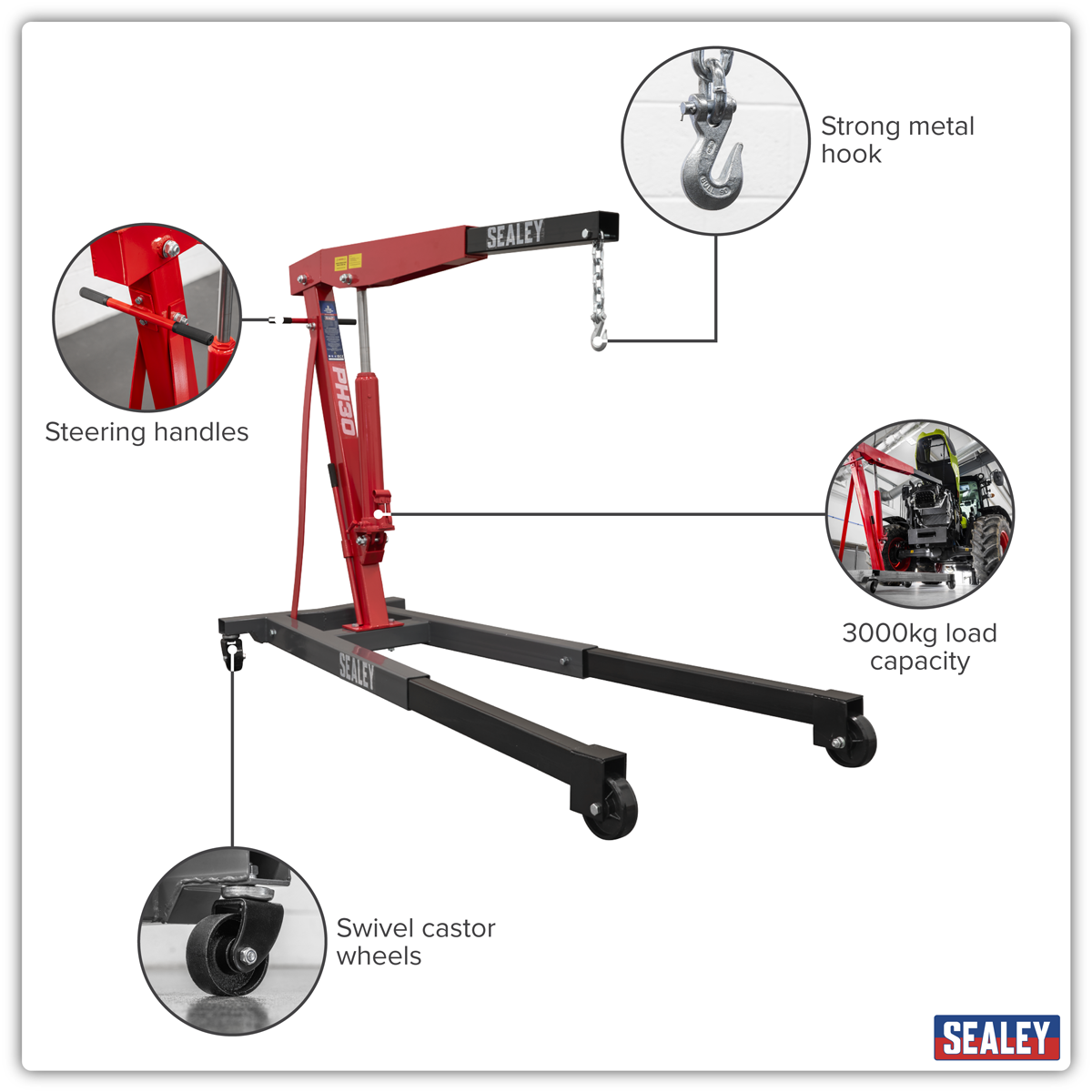

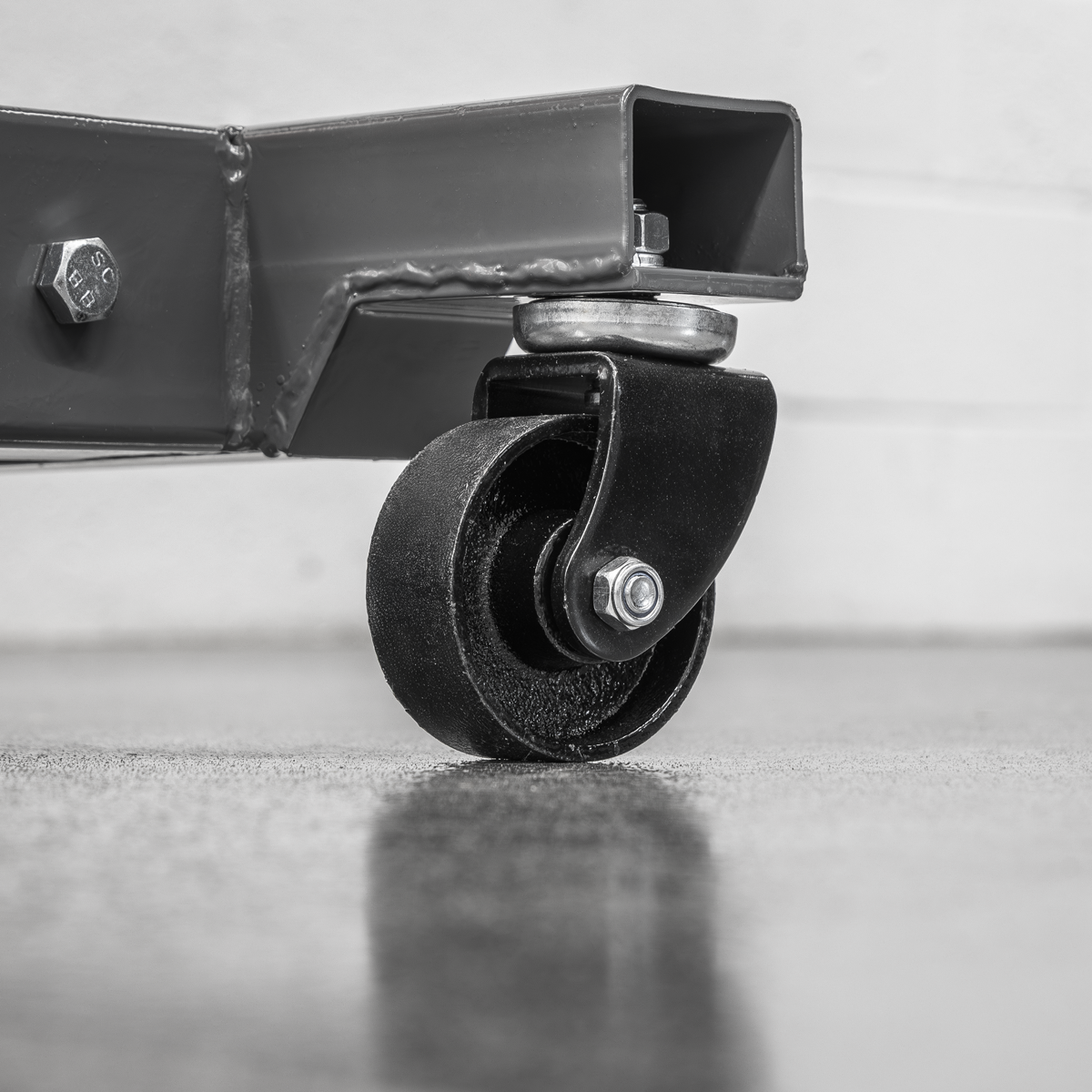

• EASY MANOEUVRABILITY - Heavy-duty fixed front wheels and rear castors.

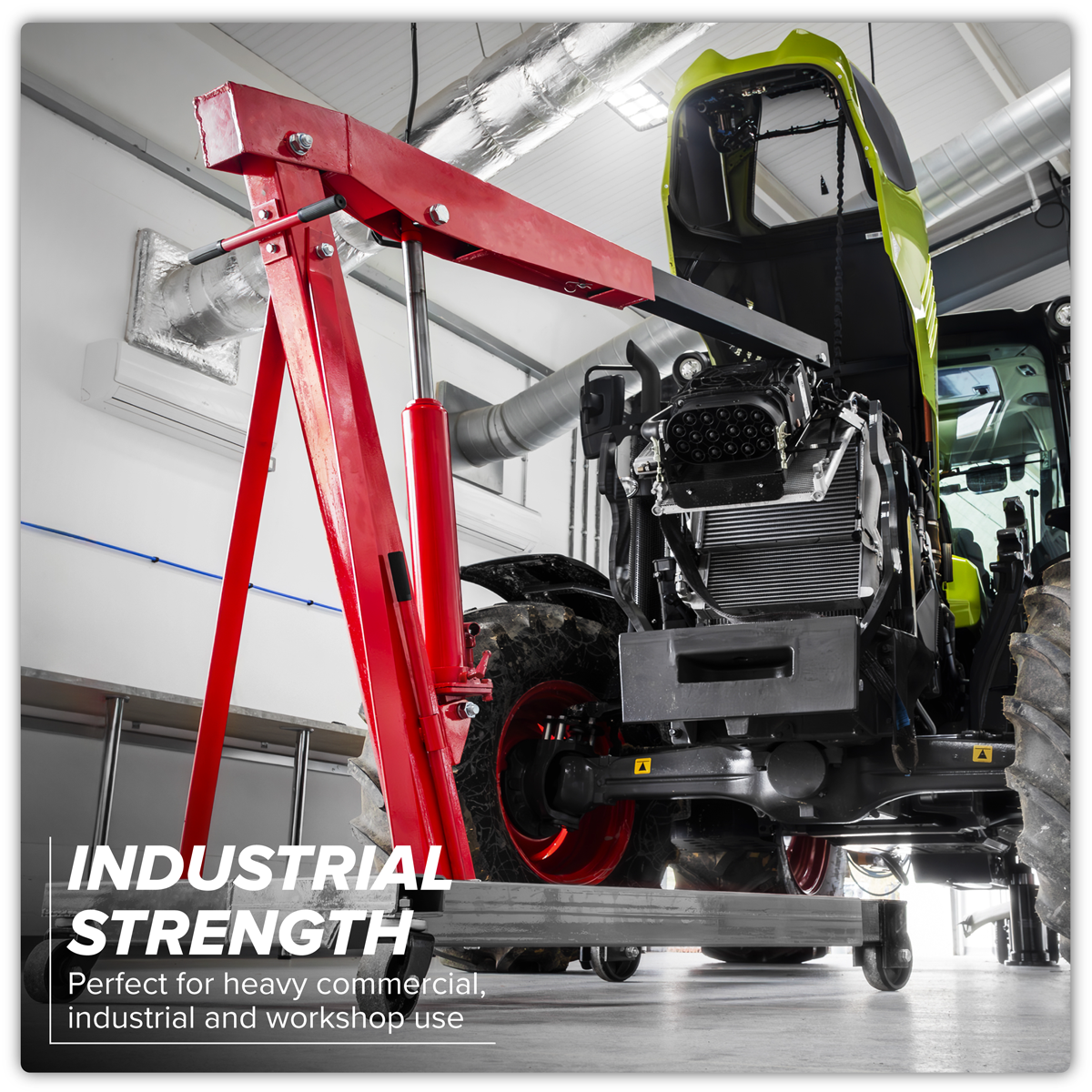

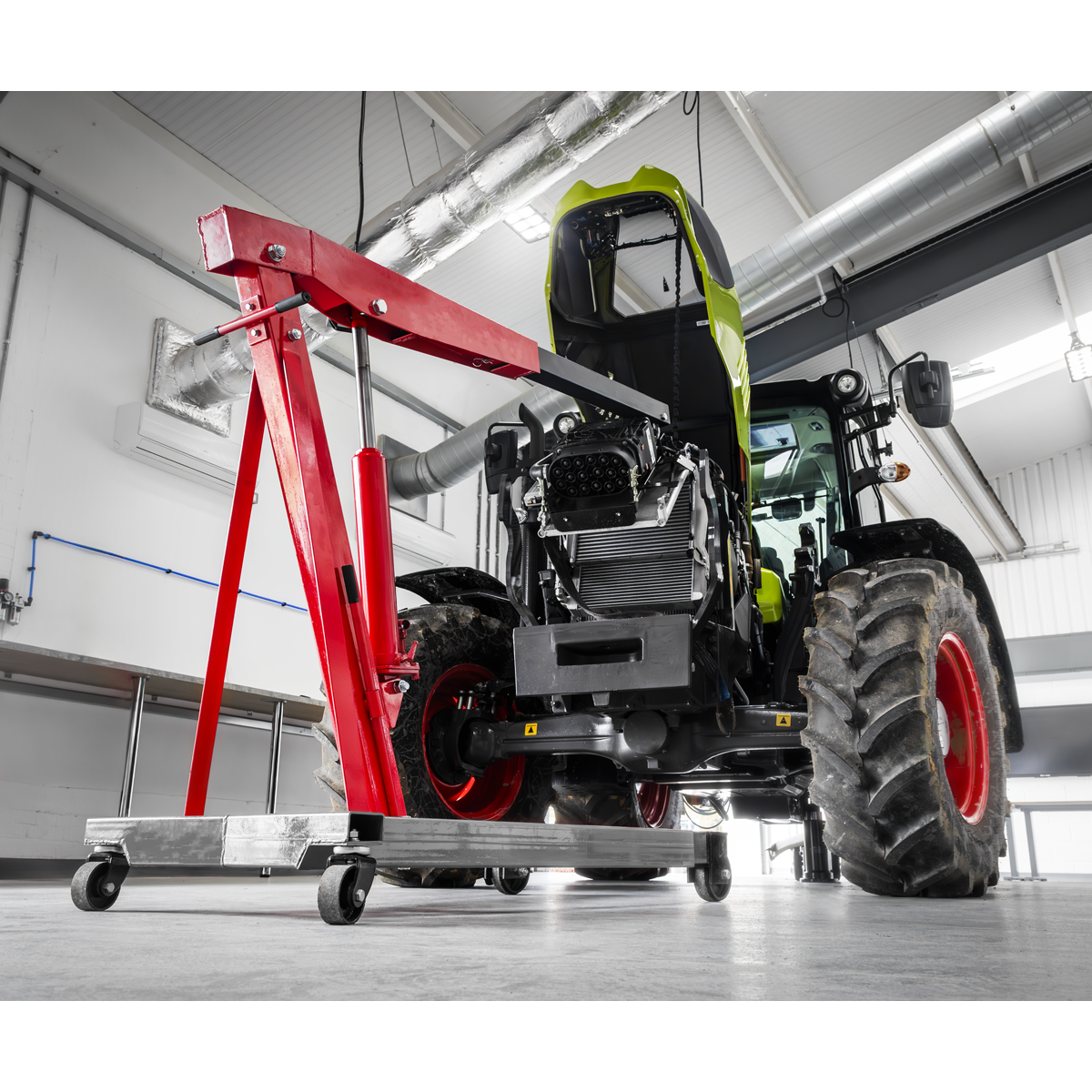

• INDUSTRIAL STRENGTH - Perfect for heavy commercial, industrial and workshop use.
• STABLE - Extendable legs for improved stability, particularly when operating at maximum jib extensions.

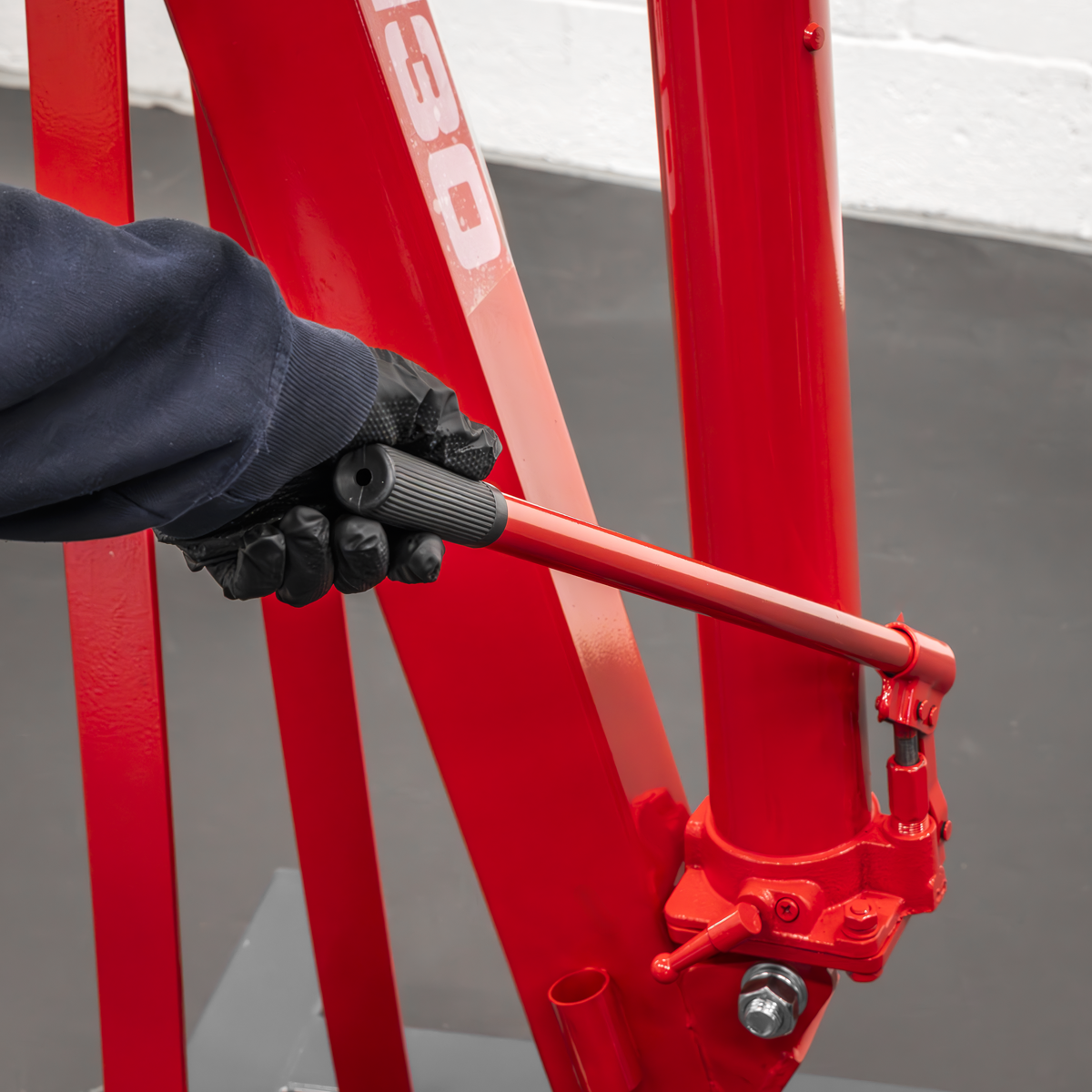

• SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.
• Delivered in knock-down form for reduced freight cost.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specifications

Model No	PH30
Brand:	Sealey
Height Jib Down:	1610mm
Height Legs Folded:	N/A
Height of Frame:	195mm
Length Legs Extended:	950mm
Length of Jib Position 1:	1200mm
Length of Jib Position 2:	1400mm
Length of Jib Position 3:	1610mm
Length of Jib Position 4:	1820mm
Length of Jib Position 5:	n/a
Lifting Capacity in Position 1:	3000kg
Lifting Capacity in Position 2:	2000kg
Lifting Capacity in Position 3:	1500kg
Lifting Capacity in Position 4:	1000kg
Lifting Capacity in Position 5:	n/a
Max. Lift Ht at Jib Position 1:	1880mm
Max. Lift Ht at Jib Position 2:	1970mm
Max. Lift Ht at Jib Position 3:	2010mm
Max. Lift Ht at Jib Position 4:	2220mm
Max. Lift Ht at Jib Position 5:	n/a
Nett Weight:	155kg
Note:	*Legs Extended
Rear Width:	780mm
Width Front Frame:	855mm*
Width Inside Front Frame:	700mm*
