Sealey PT1000 Plain Trolley 1 Tonne

Name: Sealey PT1000 Plain Trolley 1 Tonne
SKU: SEALEY-PT1000
Price: 143.94 GBP
Availability: InStock

£143.94 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

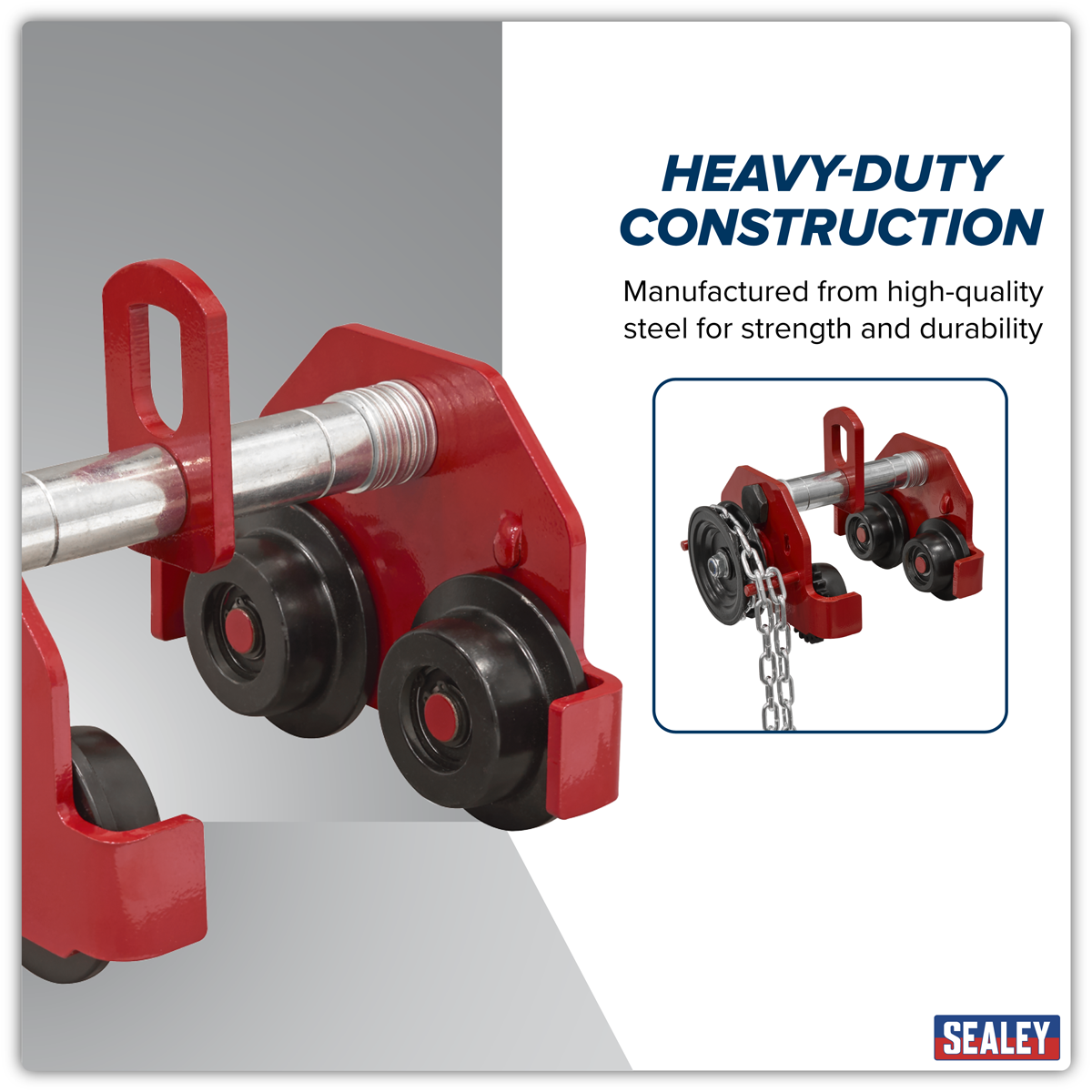

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

• Suitable for use with our lever hoists or chain blocks.
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

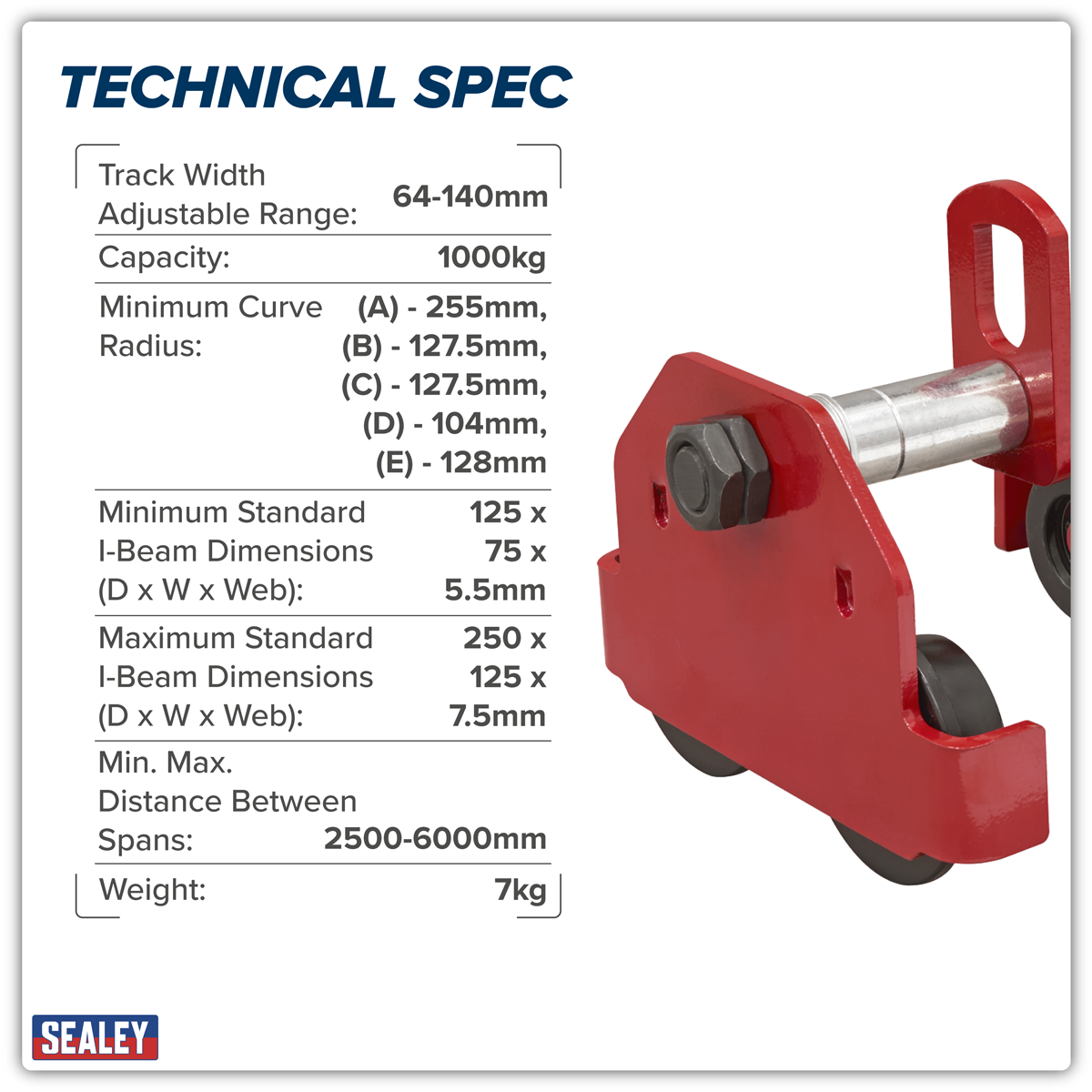

Specifications

Model No	PT1000
Brand:	Sealey
Nett Weight:	13kg
Capacity:	1000kg
Track Width Adjustable Range:	64-140mm
Minimum Curve Radius:	1000mm
A:	255mm
B:	127.5mm
C:	127.5mm
D:	104mm
E:	128mm
Weight:	13kg
Minimum Standard I-Beam Dimensions (D x W x Web):	125 x 75 x 5.5mm
Maximum Distance Between Spans:	2500mm
Maximum Standard I-Beam Dimensions (D x W x Web):	250 x 125 x 7.5mm
Maximum Distance Between Spans:	6000mm
Refer to catalogue for diagram:
