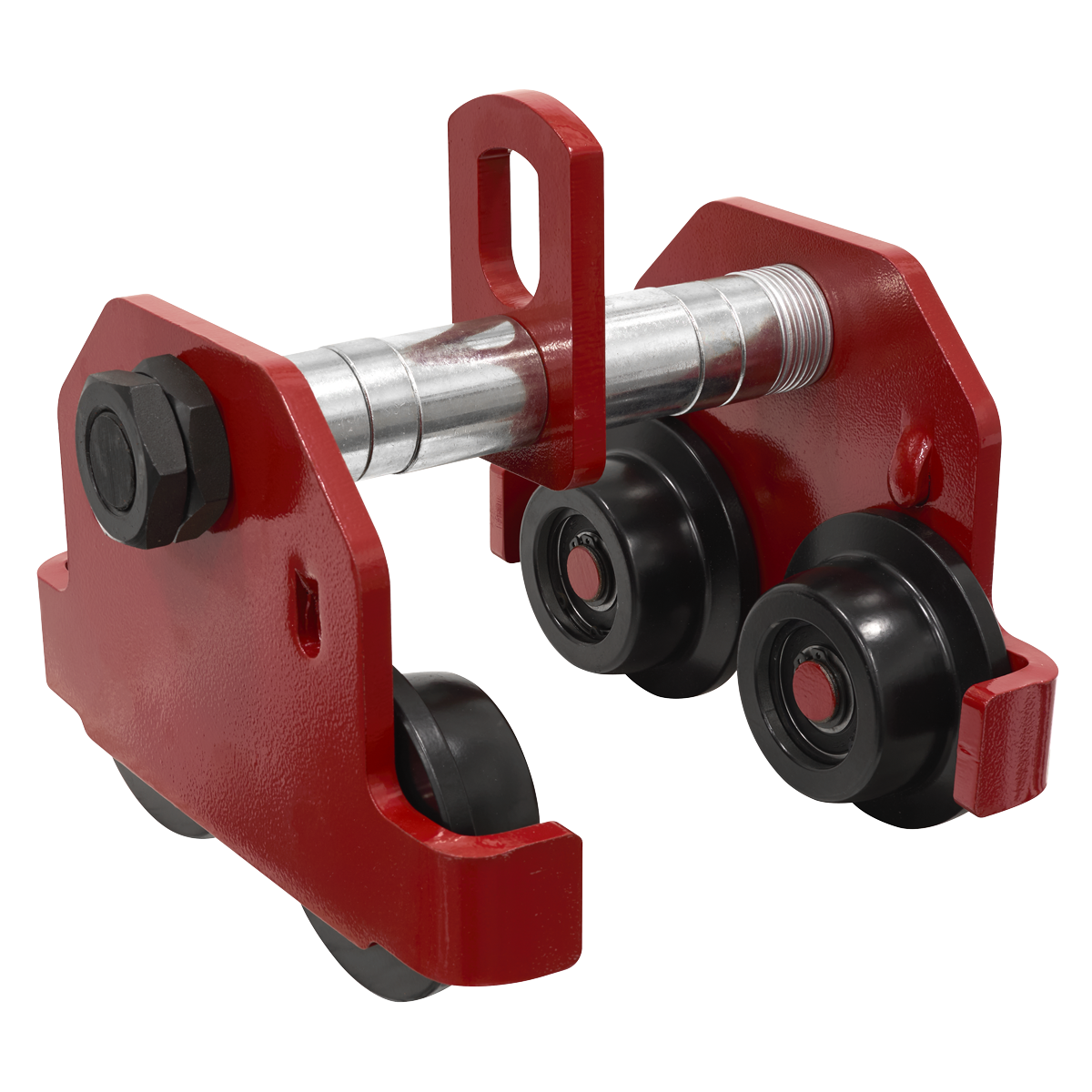

Sealey PT2000 Plain Trolley 2 Tonne

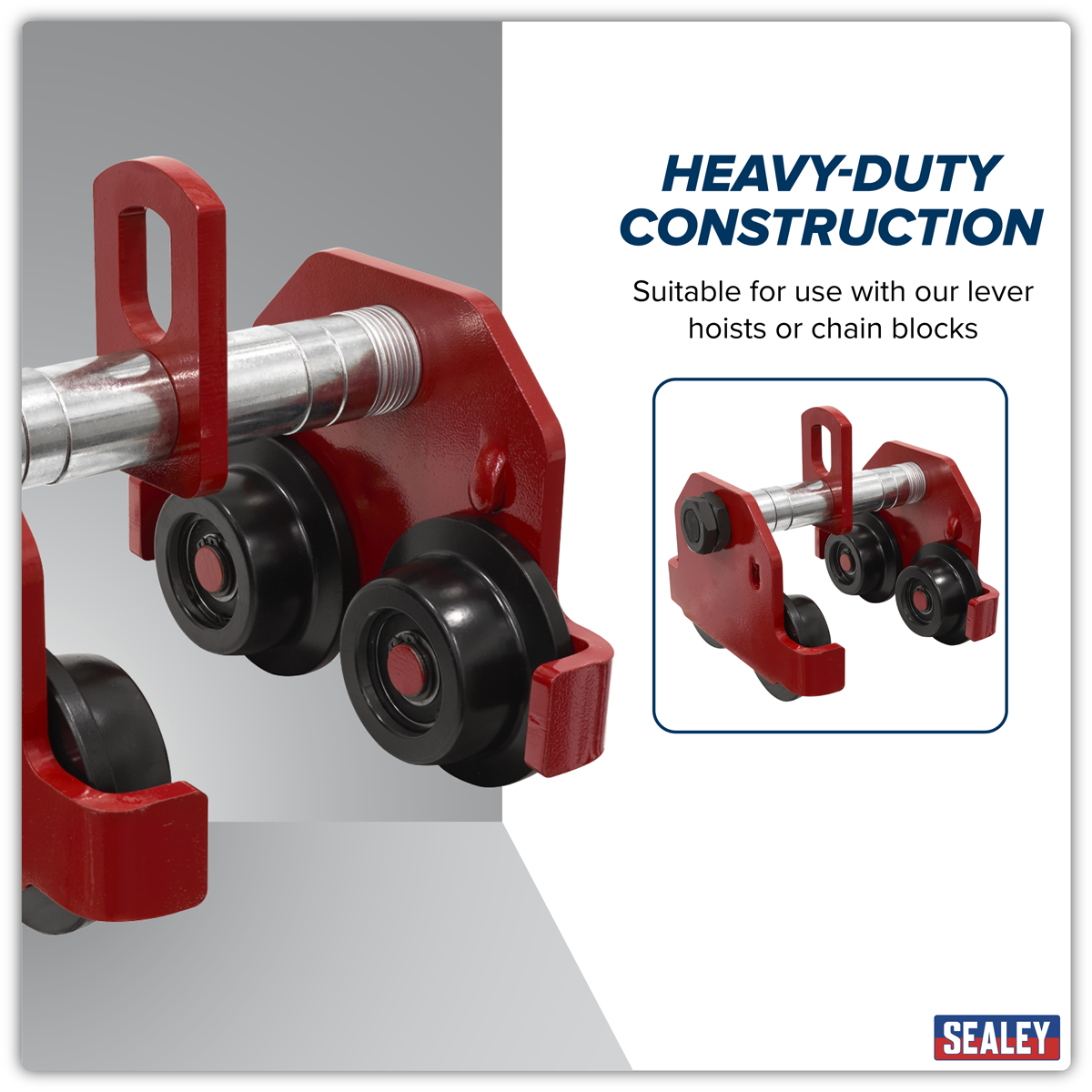

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

• Suitable for use with our lever hoists or chain blocks.
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

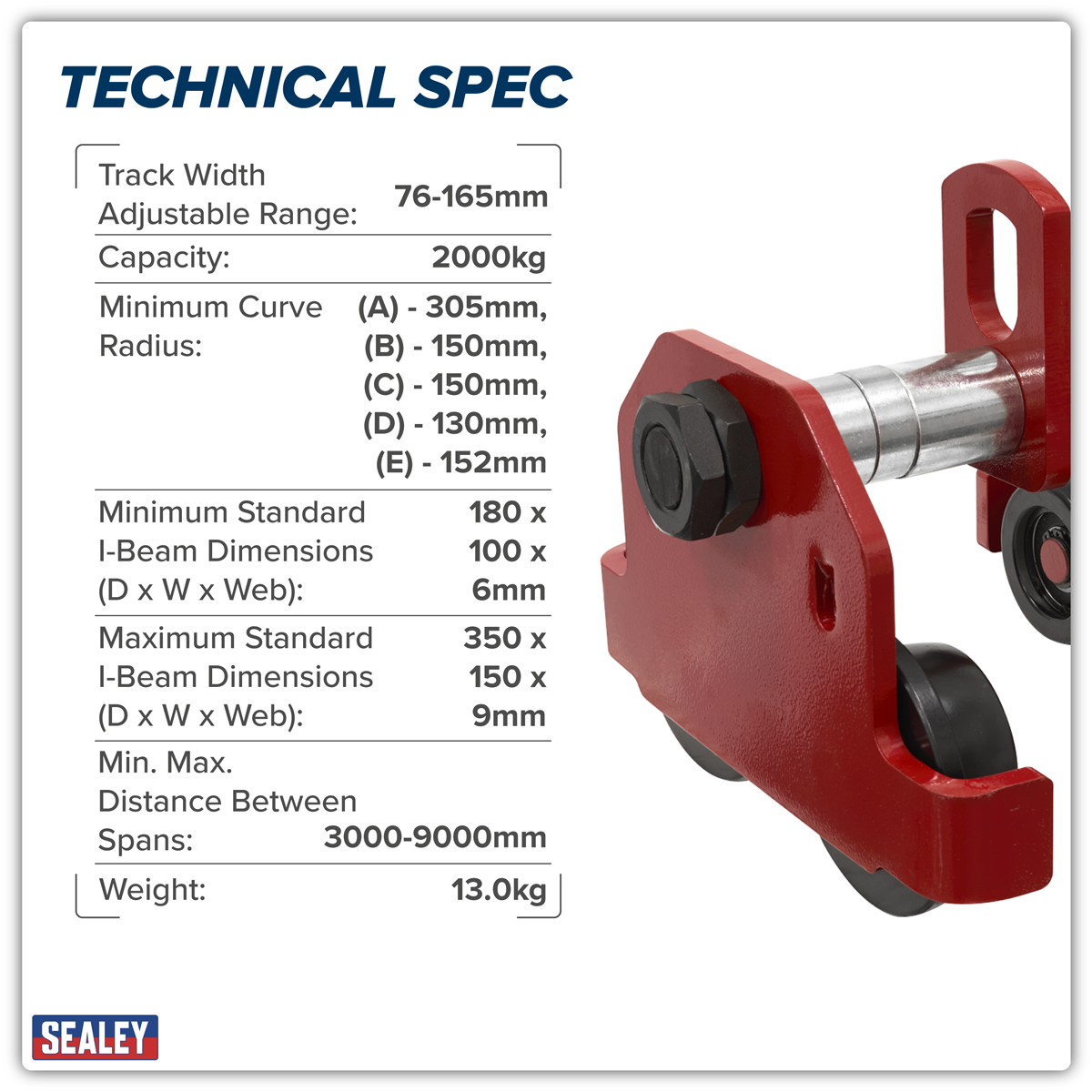

Specifications

Model No	PT2000
Brand:	Sealey
Nett Weight:	20kg
Capacity:	2000kg
Track Width Adjustable Range:	76-165mm
Minimum Curve Radius:	1300mm
A:	305mm
B:	150mm
C:	150mm
D:	130mm
E:	152mm
Weight:	20kg
Minimum Standard I-Beam Dimensions (D x W x Web):	180 x 100 x 6mm
Maximum Distance Between Spans:	3000mm
Maximum Standard I-Beam Dimensions (D x W x Web):	350 x 150 x 9mm
Maximum Distance Between Spans:	9000mm
Refer to catalogue for diagram:

Documents

Instructions	View/Download
Parts Diagrams	View/Download
