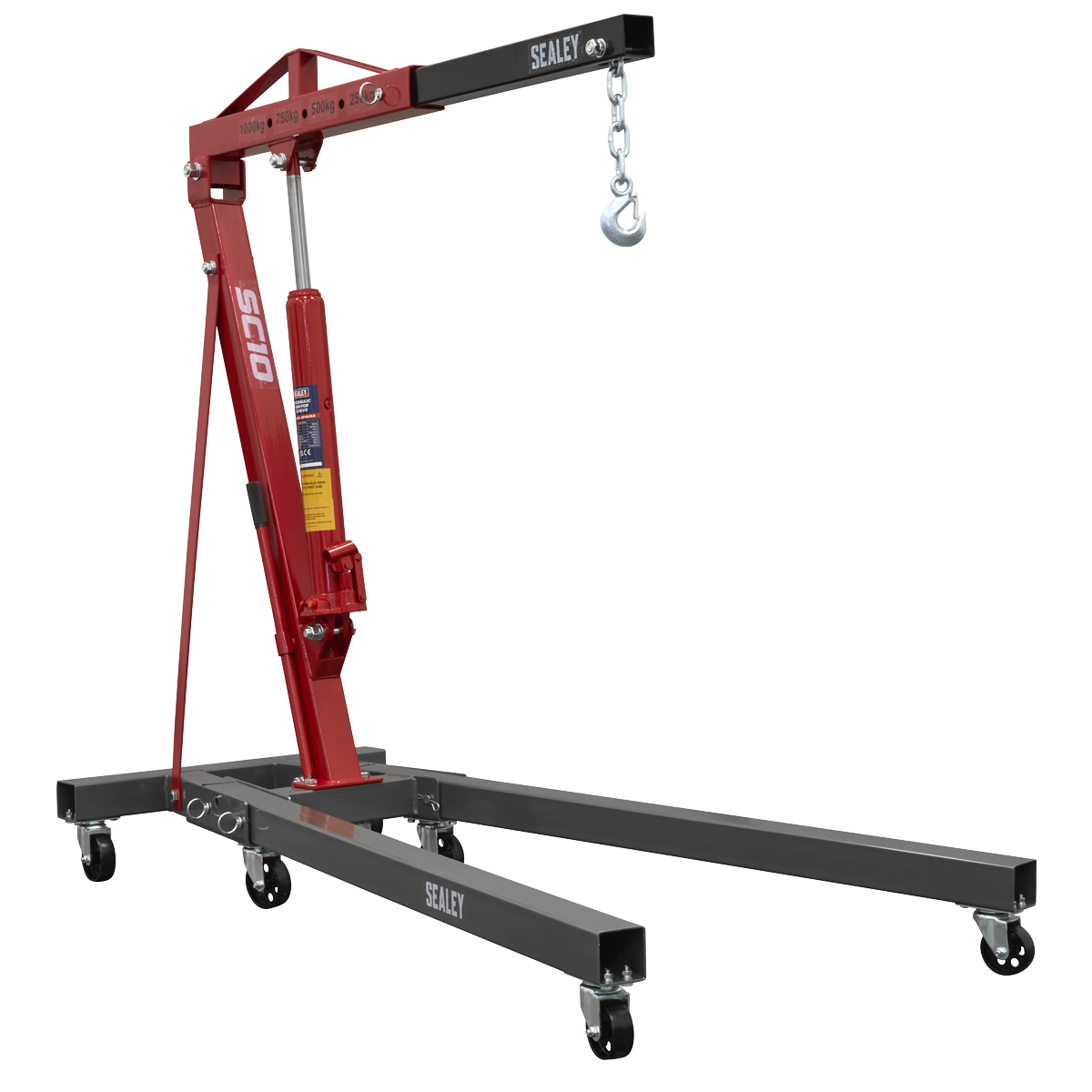

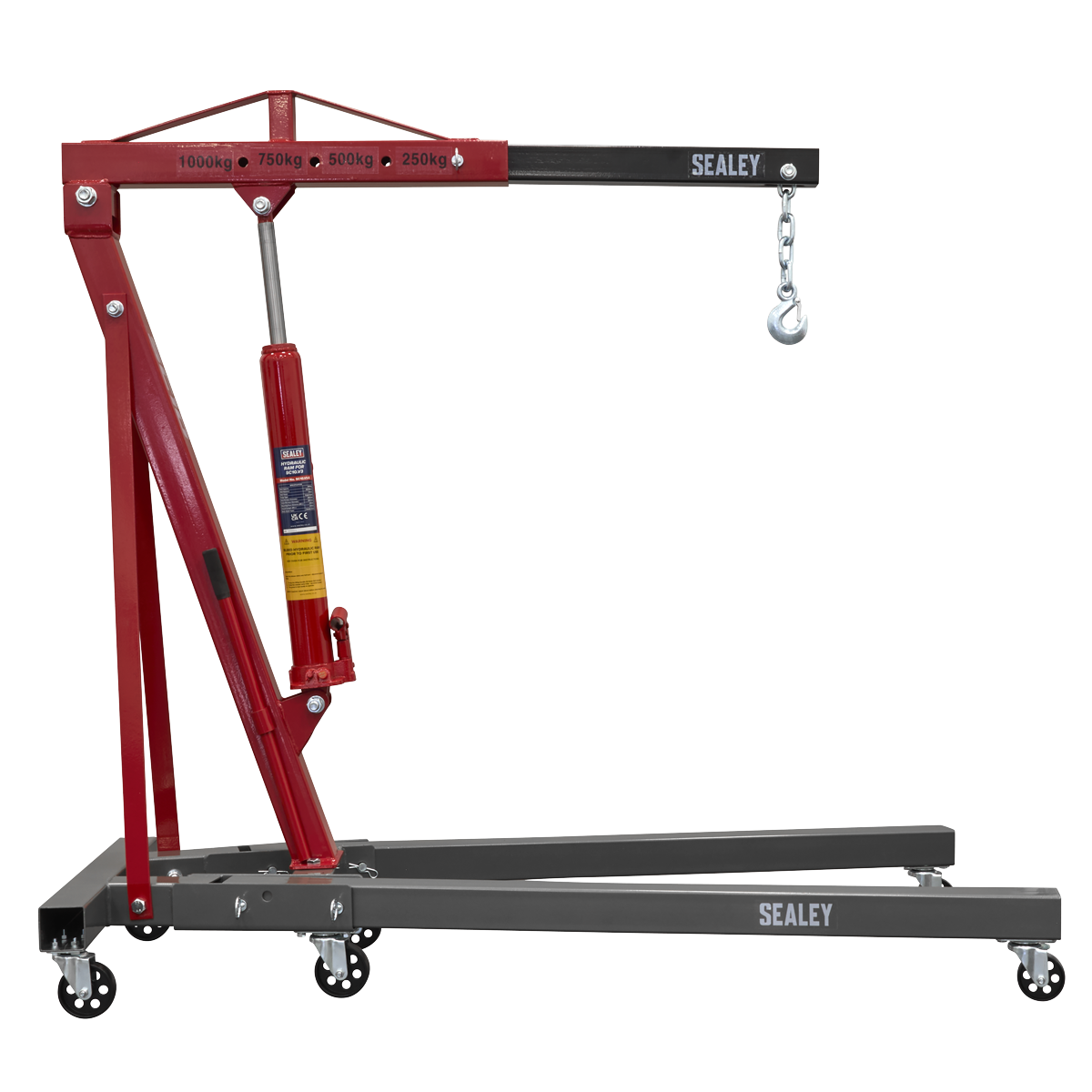

Sealey SC10 Folding Engine Crane 1 Tonne

Super economy model delivered in knock-down form, some self-assembly required. Fast folding model provides easy storage and transportation with heavy-duty castors. Weighs only 67kg and is perfect for mobile or workshop use. Side pump access with removable handle.

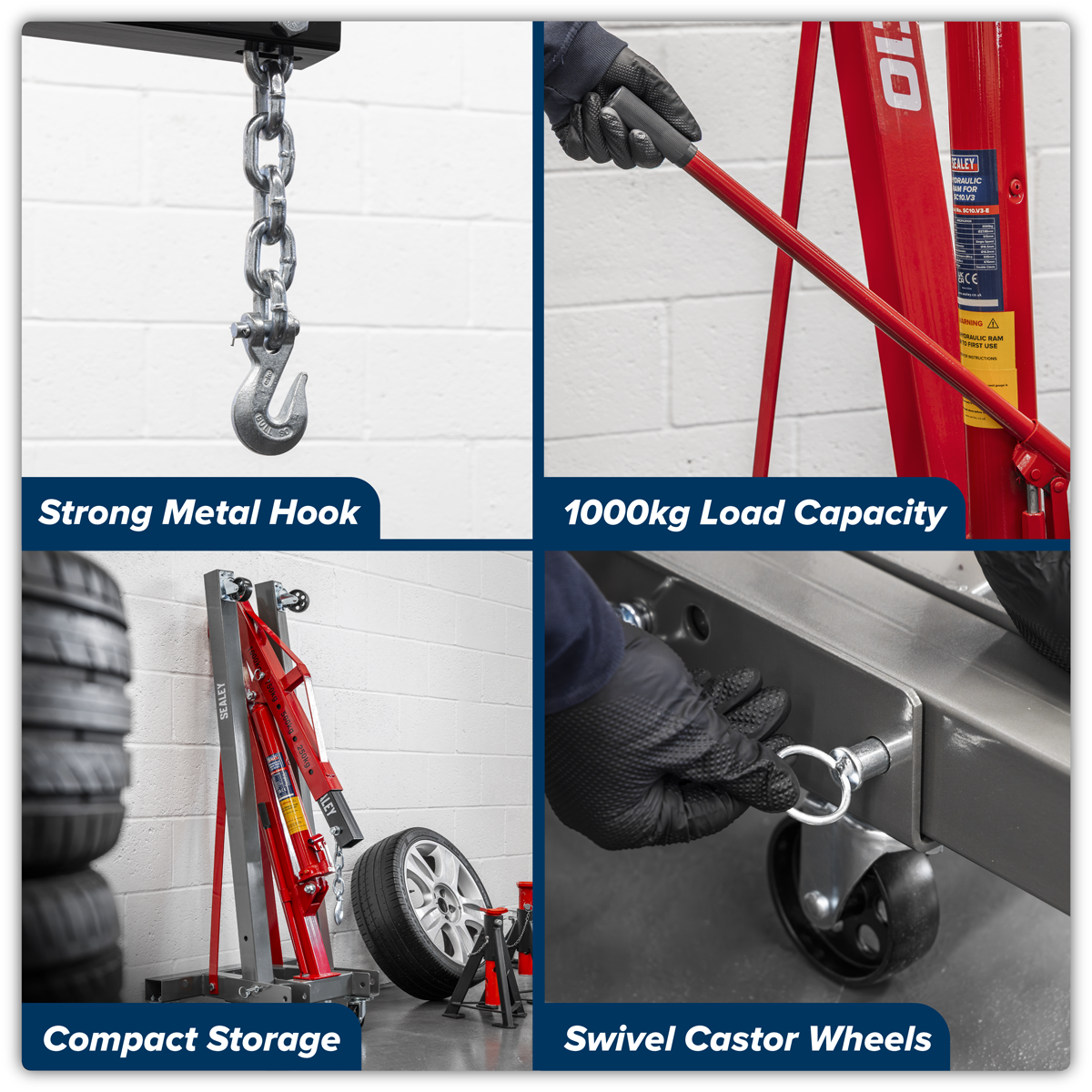

• Super economy model delivered in knock-down form, some self-assembly required.

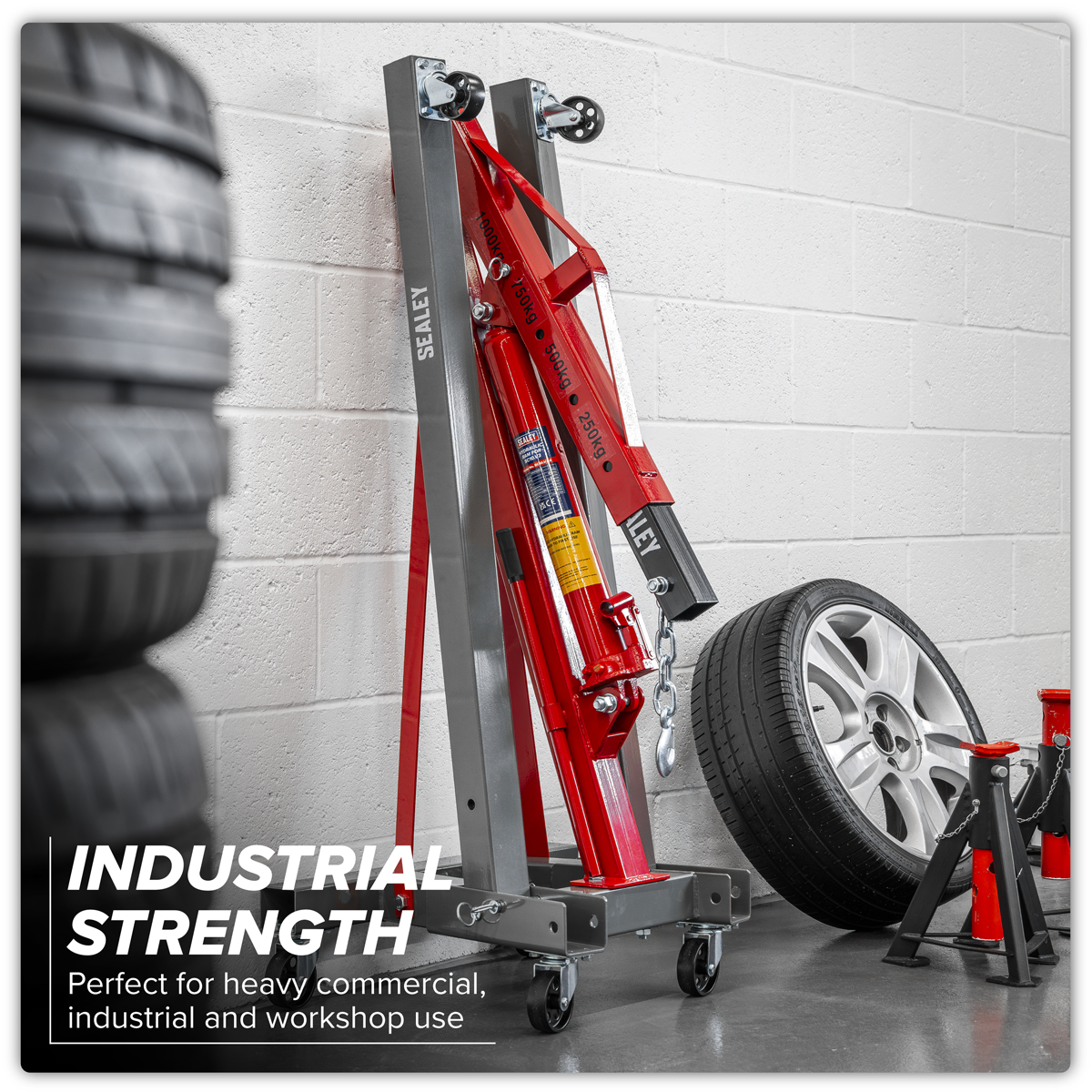

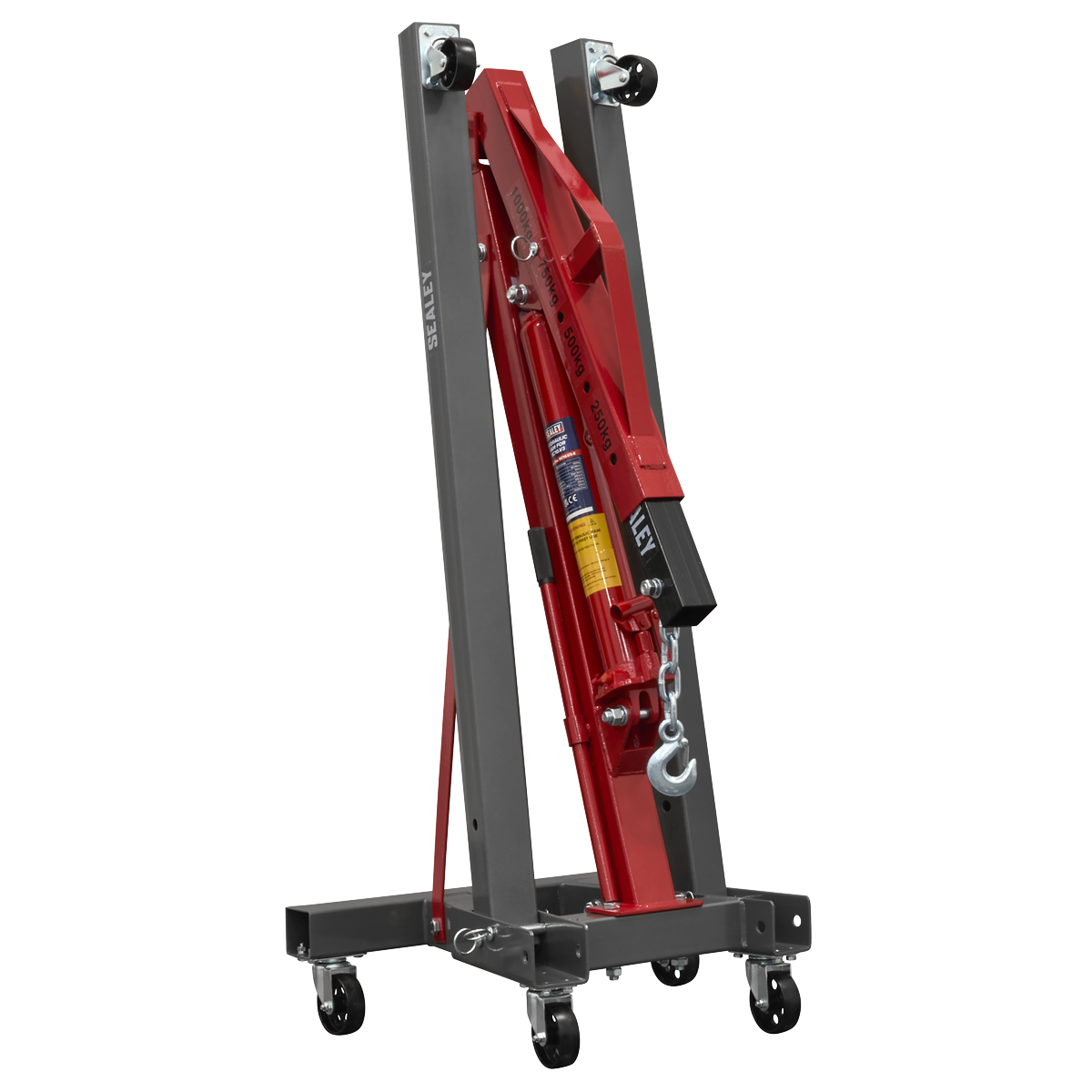

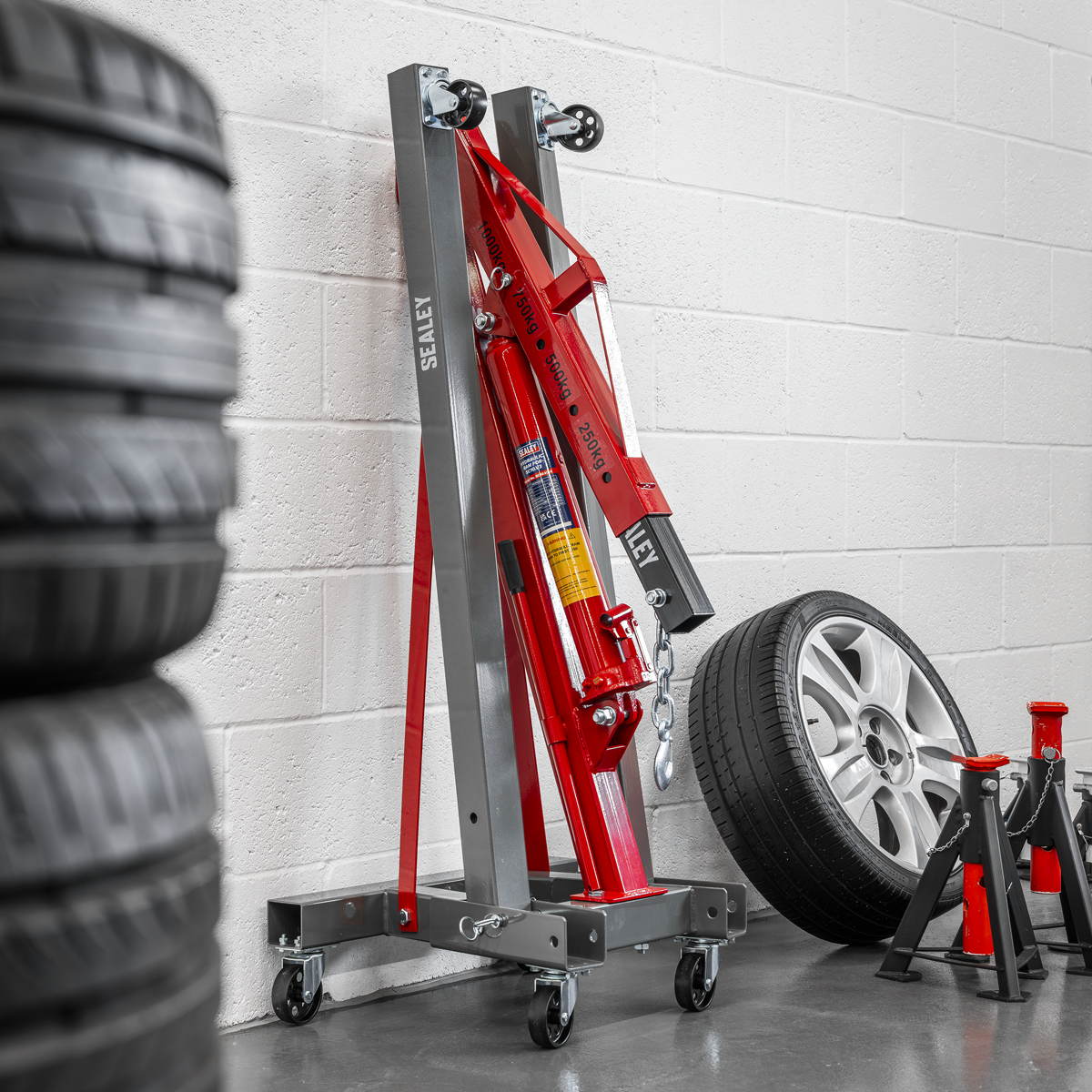

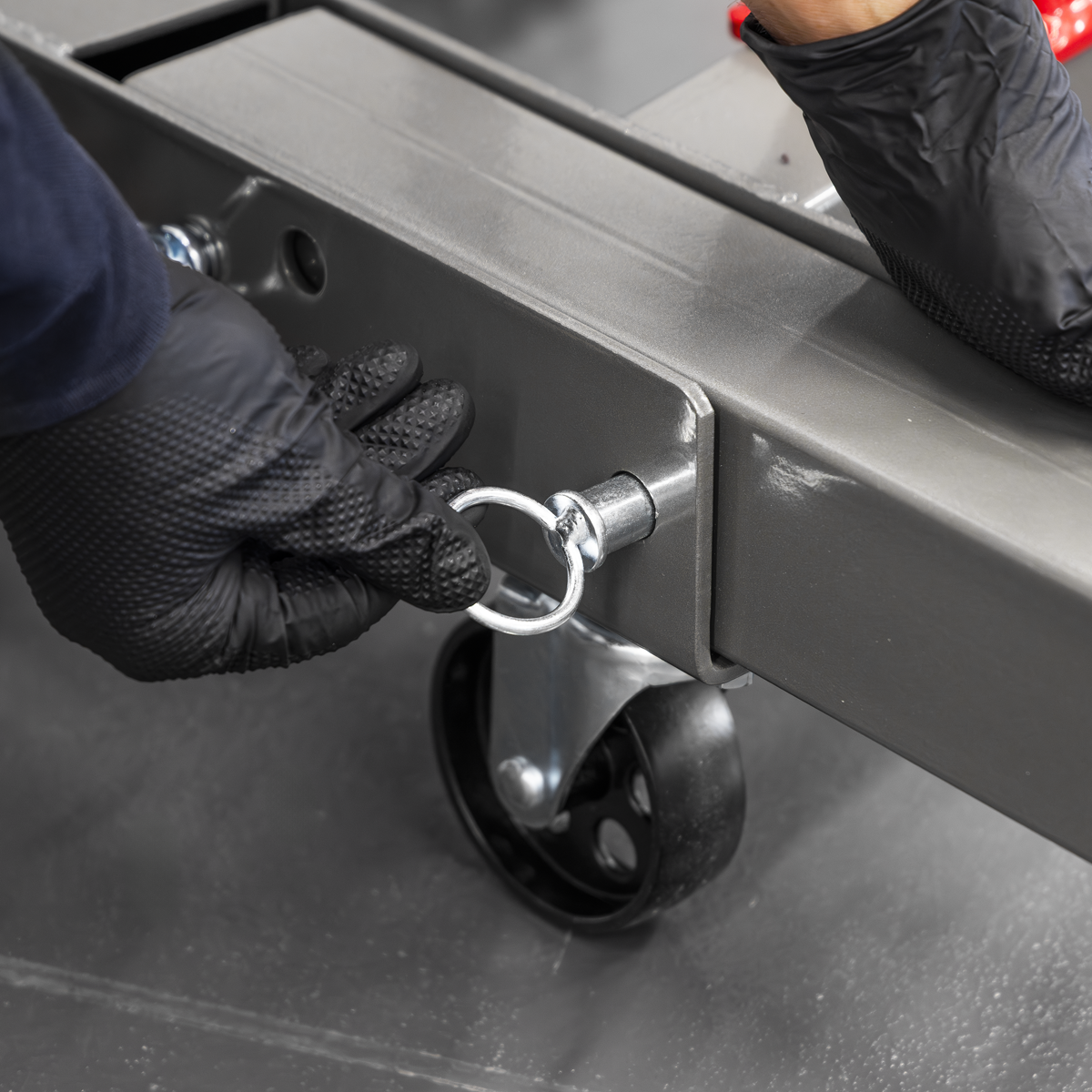

• Fast folding model provides easy storage and transportation.
• Heavy-duty castors.
• Weighs only 67kg and is perfect for mobile or workshop use.

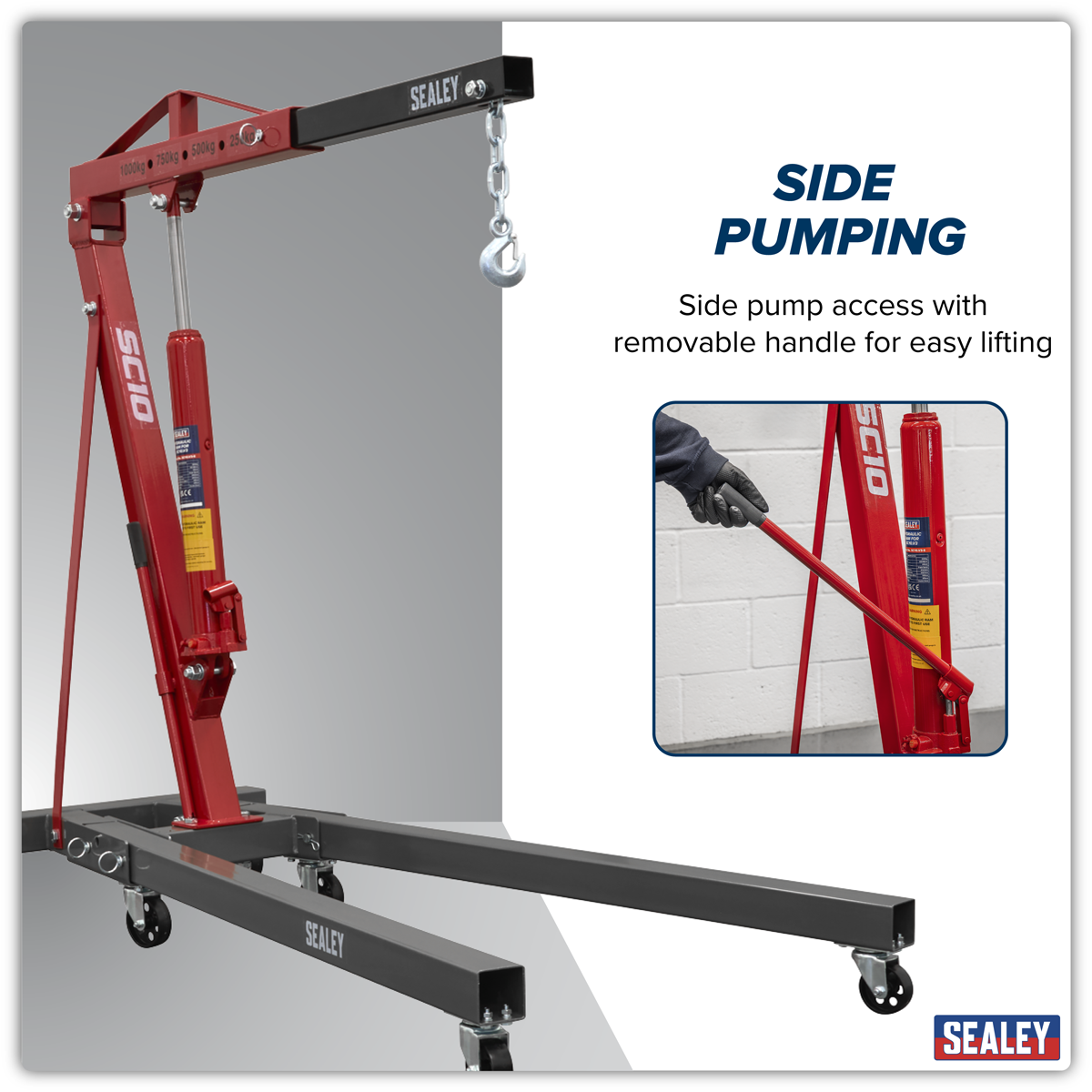

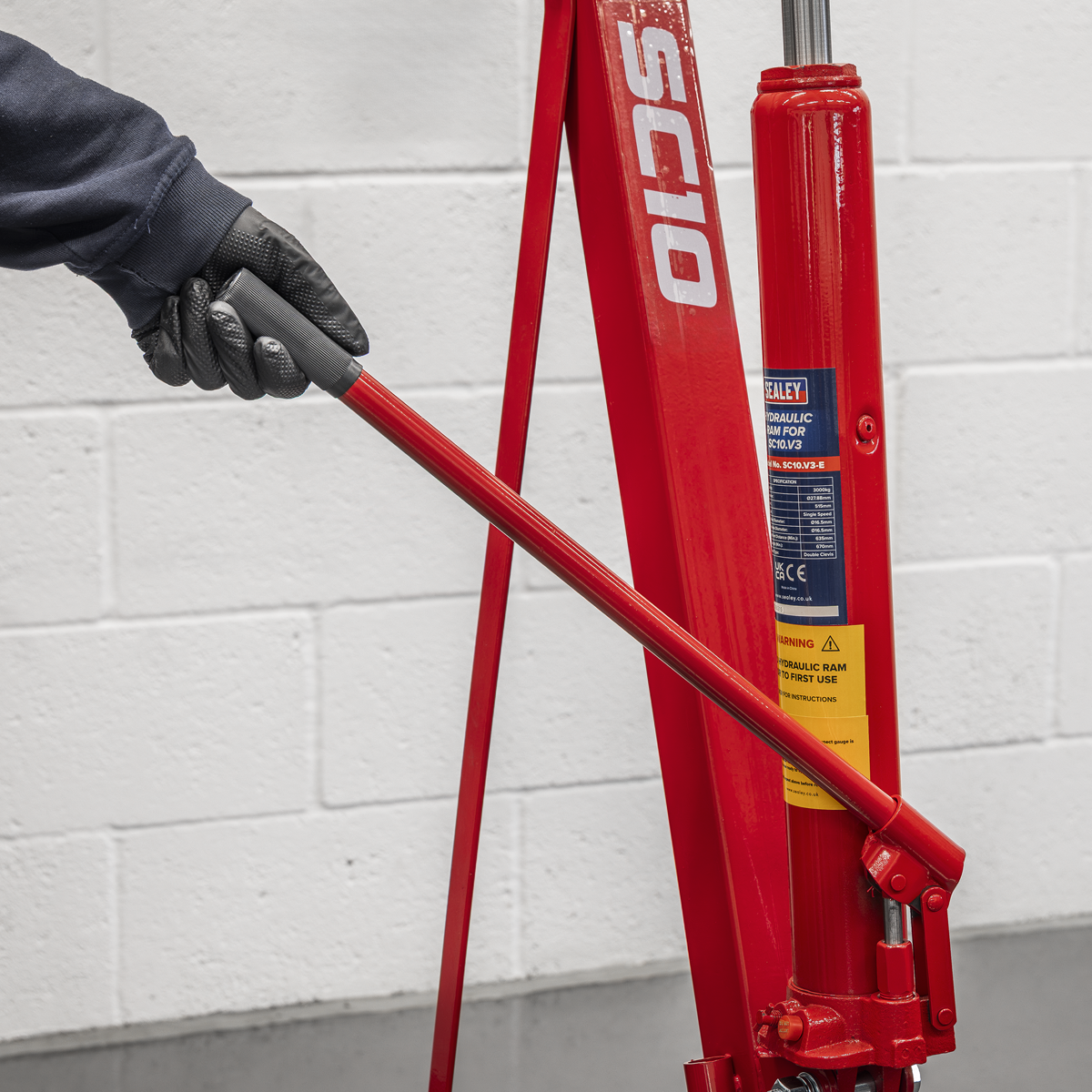

• Side pump access with removable handle.

Specifications

Model No	SC10
Brand:	Sealey
Height Jib Down:	1390mm
Height Legs Folded:	1440mm
Height of Frame:	185mm
Length Legs Extended:	1620mm

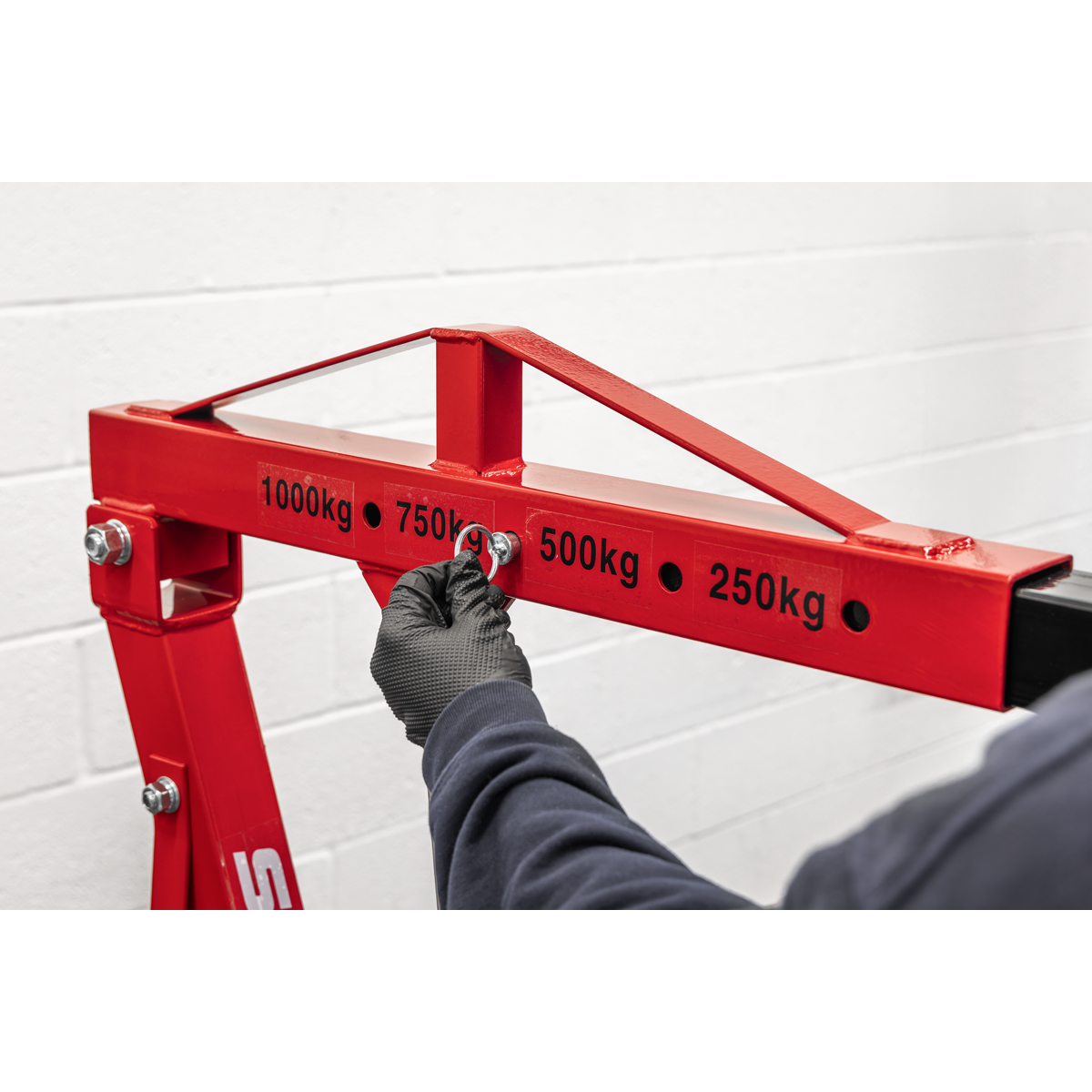

Length of Jib Position 1:	830mm
Length of Jib Position 2:	950mm
Length of Jib Position 3:	1070mm
Length of Jib Position 4:	1190mm
Length of Jib Position 5:	n/a
Length:	1620mm
Lifting Capacity in Position 1:	1000kg
Lifting Capacity in Position 2:	750kg
Lifting Capacity in Position 3:	500kg
Lifting Capacity in Position 4:	250kg
Lifting Capacity in Position 5:	n/a
Max. Lift Ht at Jib Position 1:	1820mm
Max. Lift Ht at Jib Position 2:	1935mm
Max. Lift Ht at Jib Position 3:	2030mm
Max. Lift Ht at Jib Position 4:	2150mm
Max. Lift Ht at Jib Position 5:	n/a
Nett Weight:	67kg
Rear Width:	700mm
Width Front Frame:	920mm
Width Inside Front Frame:	780mm
