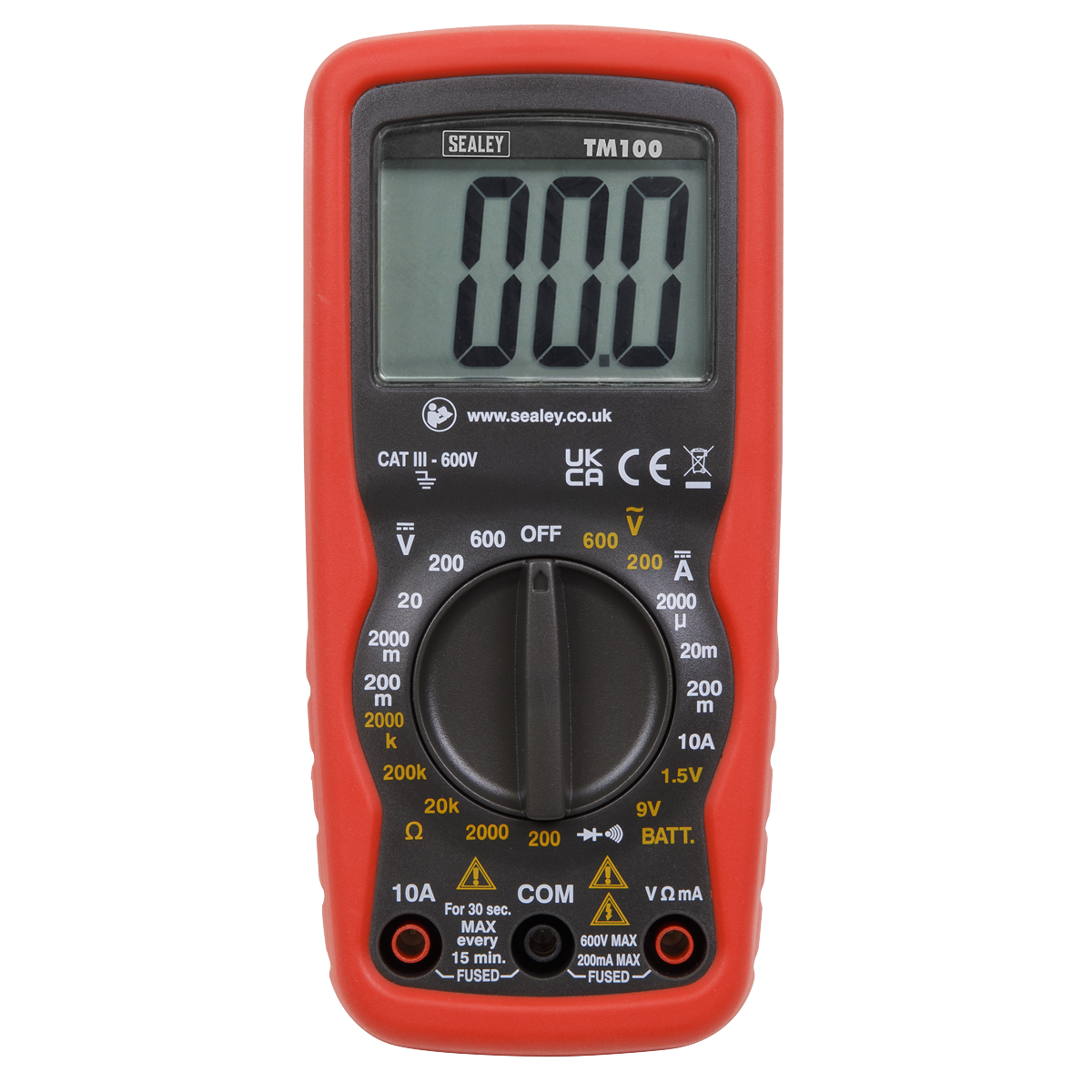

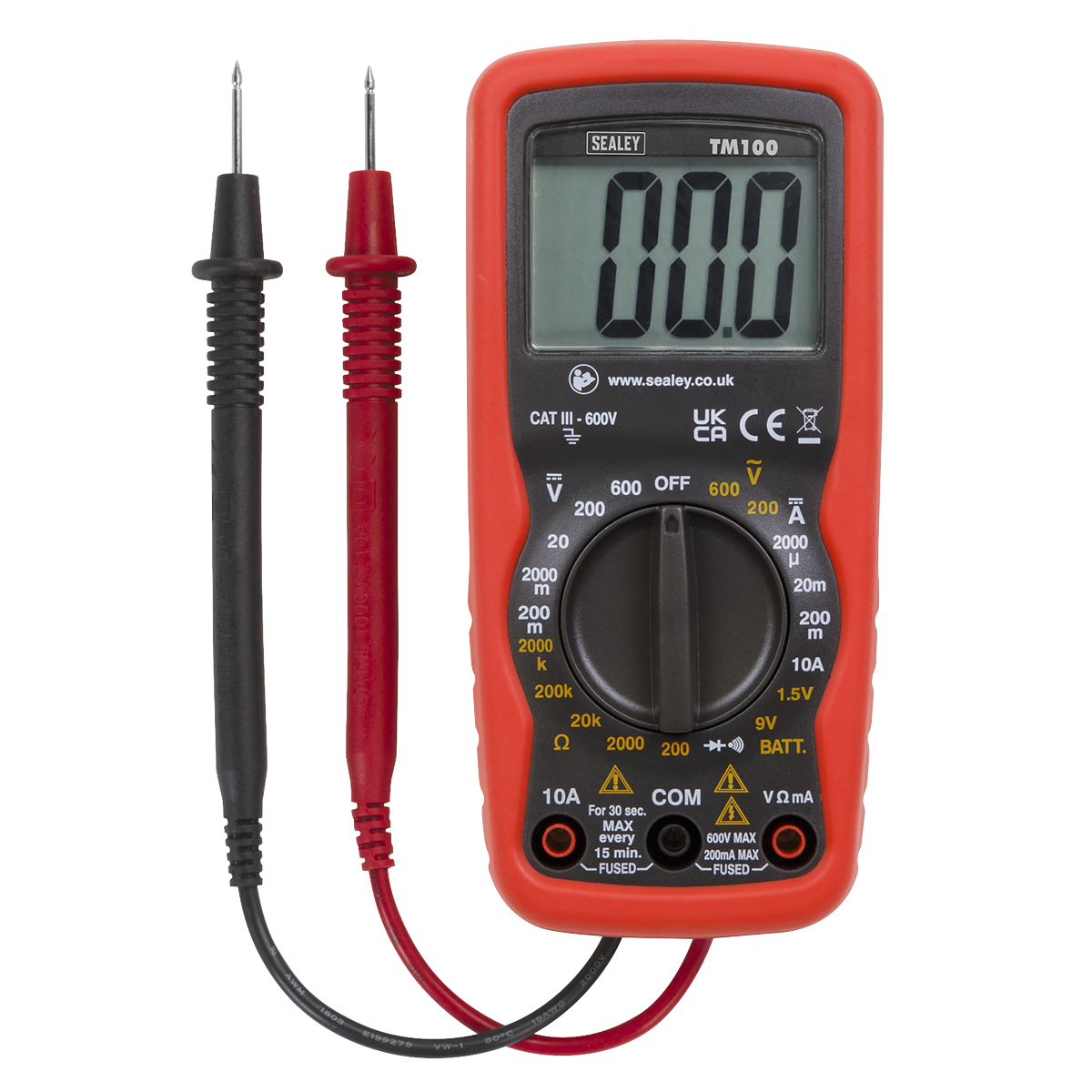

Sealey TM100 6-Function Professional Digital Multimeter

High precision multimeter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Double moulded housing with soft grip case and large display for ease of use. Probe and lead storage. Integral upright stand for use on the workbench. Supplied in zipped pouch with carry strap.

Measures:
• AC and DC Voltage
• DC Current
• Resistance
• Diode Test
• Audible Continuity

• High precision multimeter.
• Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
• Double moulded housing with soft grip case and large display for ease of use.
• Probe and lead storage.
• Integral upright stand for use on the workbench.
• Supplied in zipped pouch with carry strap.

Specifications

Model No	TM100
Brand:	Sealey
Nett Weight:	260g
AC Voltage (Accuracy):	200V, 600V (±1.2%)
DC Voltage (Accuracy):	0-200mV, 2000mV, 20V (±0.5%), 200V, 600V (±0.8%)
AC Current (Accuracy):	No
DC Current (Accuracy):	0-2000µA, 20mA (±1%), 200mA (±1.2%), 10A (±2%)
Resistance (Accuracy):	0-200Ω, 2000Ω, 20kΩ, 200kΩ (±0.8%), 2000kΩ (±1%)
Capacitance (Accuracy):	No
Temperature (Accuracy):	No
Frequency (Accuracy):	No
Duty Cycle:	No
Continuity Audible:	Yes
Diode Test:	Yes
Transistor Test:	No
Hi-Impact Rubber Case:	Yes
Digits x Height:	3 x 27.5mm
Low Battery Indicator:	Yes
Battery (Supplied):	1 x 9V
Information:	Battery Test 1.5V, 9V (±1%)
Size (L x W x D):	150 x 70 x 48mm
Weight:	260g
Conformity:	EN 61010-1

Documents

Instructions	View/Download
Material Safety Data Sheet	View/Download
