Description

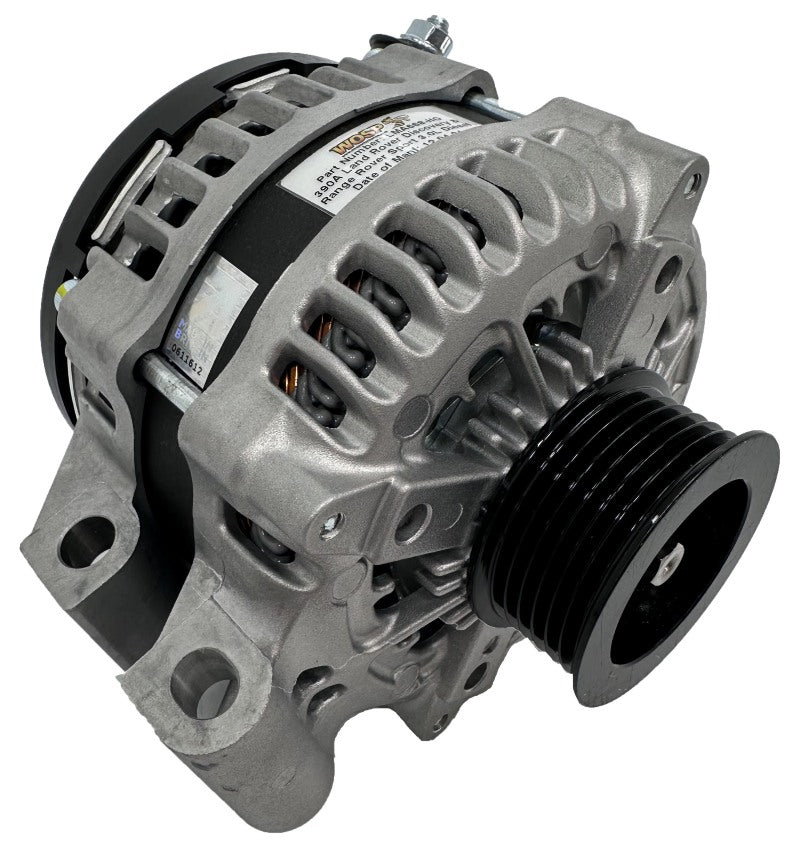

- Land Rover Discovery 3.0 Diesel 306DT (TDV6) Mk V (L319 / L462) '09-'18
- Land Rover Range Rover 3.0 Diesel / 306DT (TDV6) Mk IV (L405) '12-18
- Land Rover Range Rover Sport 3.0 Diesel 306DT (TDV6) Mk I / Mk II (L320 / L494) '09-'19
- Lucas LRA03666 / LRA04134 / LRA04369 Replacement
| Amps | 240A |
| Construction | Cast |
| Connections | B+ / COM / LIN 1 |
| Pulley | LMP088-17 |
| Hand | 3-Lug PAD |
| Lugs | 3 |
| Weight | 6.9kg |
300 Series refers to 'latest technology' alternators which use square wire (segment conductor 'hairpin') wire on the stators. These super-efficient units can yield large outputs and we manufacture most of the alternator cases in house from billet, in order to offer a wide range of 'plug & play' alternators.
300 Series alternators can be rewound and uprated to almost double their outputs. Suffix '-HO' is added to the part number. This increase in output is yielded at higher rpm therefore 'HO' 300 Series units often need 1.5-2 times more speed for output and cooling. They are less efficient than a standard unit at low rpm.
