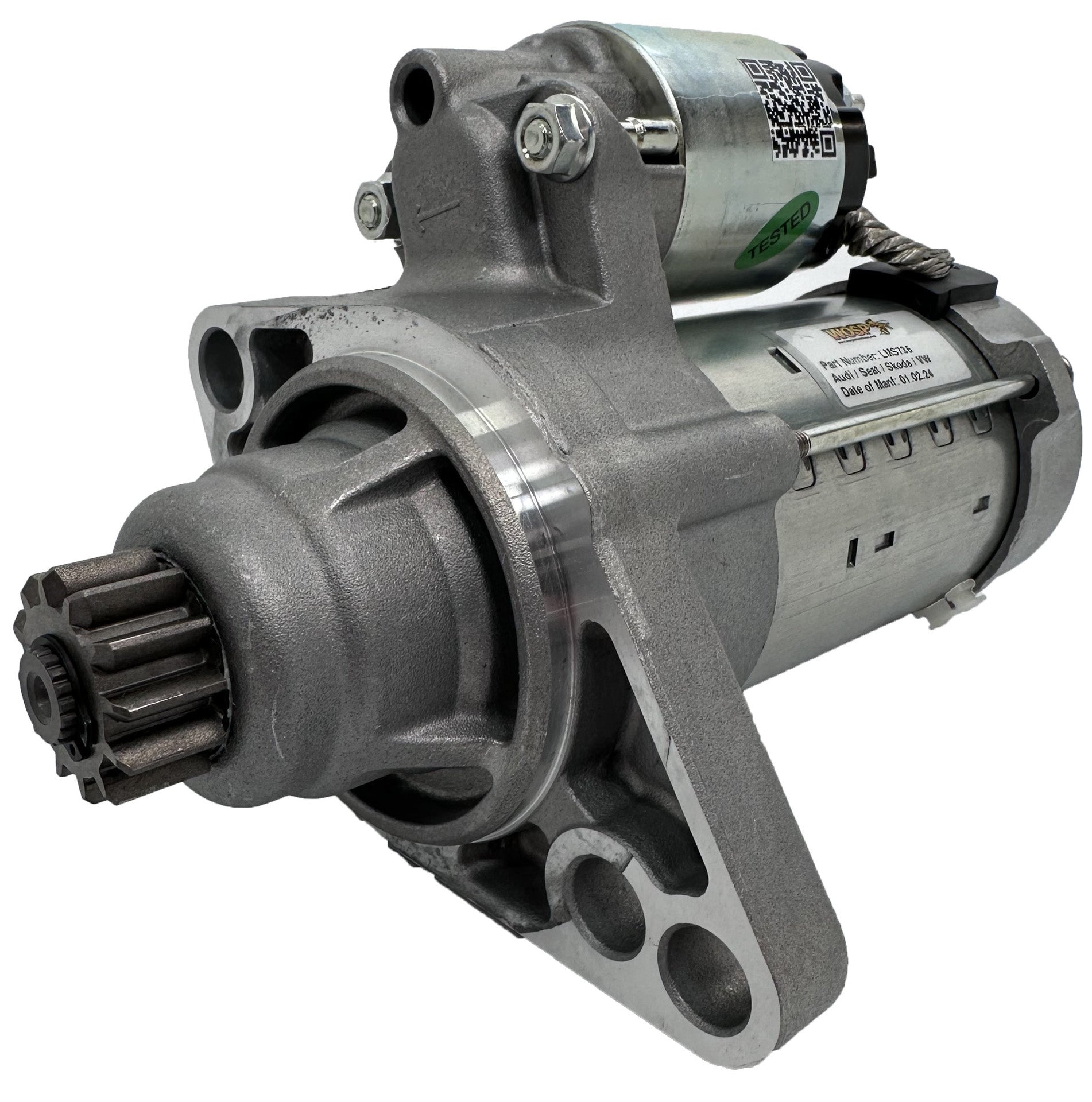

Denso PMGR
Applications
- Audi A1 1.6 Diesel CAYC / CAYB ( 8X1 / 8XA ) '10-'15
- Audi A3 1.6 Diesel CAYC / CAYB ( 8P7 / 8PA / 8P1 / 8P1 / 8PA ) '09-'13
- Seat Altea 1.6 Diesel CAYC / CAYB ( 5P1 ) '10-
- Seat Altea Freetrack 1.6 / 2.0 Diesel CAYC / CFHC ( 5P8 ) '10-
- Seat Altea XL 1.6 / 2.0 Idesl CAYC / CAYB / CFHC ( 5P5 ) '09-
- Seat Ibiza 1.2 / 1.6 Diesel CFWA / CAYB / CLNA Mk IV ( 6J5 ) '09-'15
- Seat Ibiza SC 1.2 / 1.6 Diesel CAYB / CAYC / CFWA Mk IV Sportscoupe ( 6J1 ) '09-'15
- Seat Ibiza ST 1.2 / 1.6 Diesel CAYB / CAYC / CLNA / CFWA Mk IV ( 6J8 ) '10-'15
- Seat Leon 1.6 Diesel CAYC / CAYB ( 1P1 ) '10-'13
- Seat Toledo 1.6 Diesel CAYC / CAYB / CLNA Mk IV ( KG3 ) '12-'15
- Skoda Fabia 1.2 / 1.6 Diesel CFWA / CAYB / CAYA / CAYC Mk II ( 542 / 545 ) '10-'14
- Skoda Fabia Scount 1.6 Diesel CAYB / CAYC / CAYA / Mk II ( 542 / 545 ) '10-'14
- Skoda Octavia 1.6 Diesel CAYC Mk II ( 1Z5 / 1Z3 ) '09-'13
- Skoda Rapid 1.6 Diesel CAYB / CAYC / CLNA ( NH3 ) '12-'19
- Skoda Rapid Spaceback 1.6 Diesel CAYB / CAYC / CLNA Spaceback ( NH1 ) '12-'19
- Skoda Roomster 1.2 / 1.6 Diesel CFWA / CAYC / CAYB ( 5J7 ) '10-'15
- Skoda Roomster Pratik / Scout 1.2 / 1.6 Diesel CFWA / CAYB / CAYC ( 5J7 ) '10-15
- Skoda Superb 1.6 Diesel CAYC Mk II ( 3T4 / 3T5 ) '10-'15
- Skoda Yeti 2.0 CFHA / CLCA / CUUA / DFSA Outdoor ( 5L6 / 5L7 ) '09-'17
- VW Beetle 1.6 CAYC ( 5C1 / 5C7 ) '11-'16
- VW Caddy 1.6 Diesel CAYE / CAYD Mk III / Mk IV ( 2CA / SAA / 2CB ) '10-'20
- VW Caddy Maxi 1.6 Diesel CAYE / CAYD Mk III / Mk IV ( SAH / 2CH /SAJ / 2CJ ) '10-20
- VW California 2.0 Diesel CAAC / CCHA / CAAB / CXGB / CXGA / CAAA / CCHB / CAAE / CFCA ( SGC / SGG / 7EC / 7EF / 7EG ) '09-'19
- VW Campmobile 2.0 Diesel CAAC / CAAB / CCHA / CFCA / CAAE / CCHB ( 7EC ) '09-'15
- VW Caravelle 2.0 Diesel CAAE / CCHB / CSDA / CAAC / CCHA / CAAB / CXGB / CFCA / CAAA / CAAD ( 7EB / 7EJ / SGB / SGJ ) '09-'15
- VW Golf 1.6 / 2.0 Diesel CAYC / CAYB / CLCA / CBDC / CFHC / CJAA Mk VI ( 5K1 / 517 / AJ5 ) '09-'16
- VW Golf Plus 1.6 / 2.0 Diesel CAYC / CAYB / CBDC / CLCA Mk V ( 521 ) '09-'14
- VW Jetta 1.6 / 2.0 Diesel CAYC / CLCA / CUUA / CFFB / CLCB Mk VI ( 162 / 163 ) '10-'
- VW Multivan 2.0 Diesel CAAA / CAAB / CAAC / CAAD / CAAE / CCHB / CCHA / CFCA / CXGB ( 7EF / 7EM / 7EN / SGF / SGM / SGN ) '09-'15
- VW Passat 1.6 / 2.0 Diesel CAYC / CBDC / CBAB / CFFB ( 362 / 365 / 3C2 / 3C5 / 357 ) '08-'14
- VW Polo 1.2 / 1.6 Diesel CAYA / CAYB / CAYC / CFWA Mk V ( 6R1 ) '09-'14
- VW Touran 1.6 / 2.0 Diesel CAYC / CAYB / CFHF / CLCA ( 1T3 ) '10-'15
- VW Transporter 2.0 Diesel 'various' '09-'15
- VW / Volkswagen 'Various' Models
| Voltage | 12V |
| Polarity | -VE |
| Power | 2kW |
Starter motor type terminology explained:
- OSGR – Off Set Gear Reduction (larger motor is offset, solenoid acts directly on drive).
- PMGR – Permanent Magnet Gear Reduction (planetary gearbox usually on drive axis).
- WFGR – Wound Field Gear Reduction.
It is strongly advised that PMGR units are not used in conjunction with a bulkhead mounted solenoid, by linking the B+ and ignition trigger terminal of our starter motor. This can cause the pinion to hang in mesh after the engine fires. It will cause unnecessary noise and wear to the ring gear, and will shorten the life of the starter motor's clutch.
We would advise that the slimline Hitachi or Axial types should only be favoured over a Denso type due to space constraints / form factor.
WOSP is 100% OE based. However for many of our more price sensitive lines such as our classic range, we use a remanufactured OE Denso starter motor. This still offers far better quality than a new aftermarket or imitation piece. You will see the type noted with a suffix *r to denote this.
