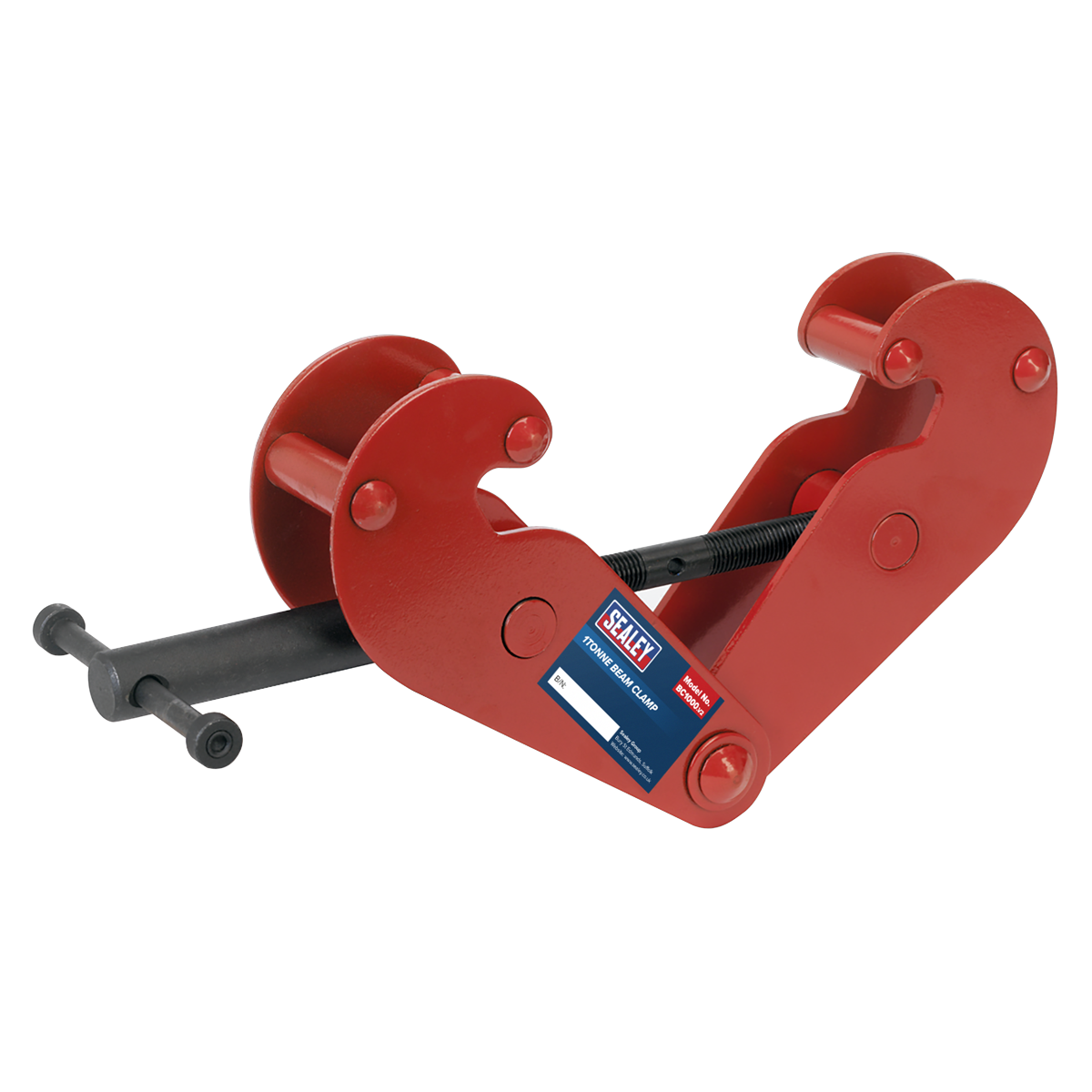

Sealey BC1000 Beam Clamp 1 Tonne

Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle. The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp. Low profile afforded by integral pivot/lifting point.

• Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle.
• The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp.
• Low profile afforded by integral pivot/lifting point.

Specifications

Model No	BC1000
Adjustable Beam Width:	75-220mm
Brand:	Sealey
Capacity:	1000kg
Dimensions:	(A) - 260mm, (B) - 180-360mm, (C) - 64mm, (D) - 5mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm
Nett Weight:	4.2kg
Note:	Refer to catalogue for diagram.
