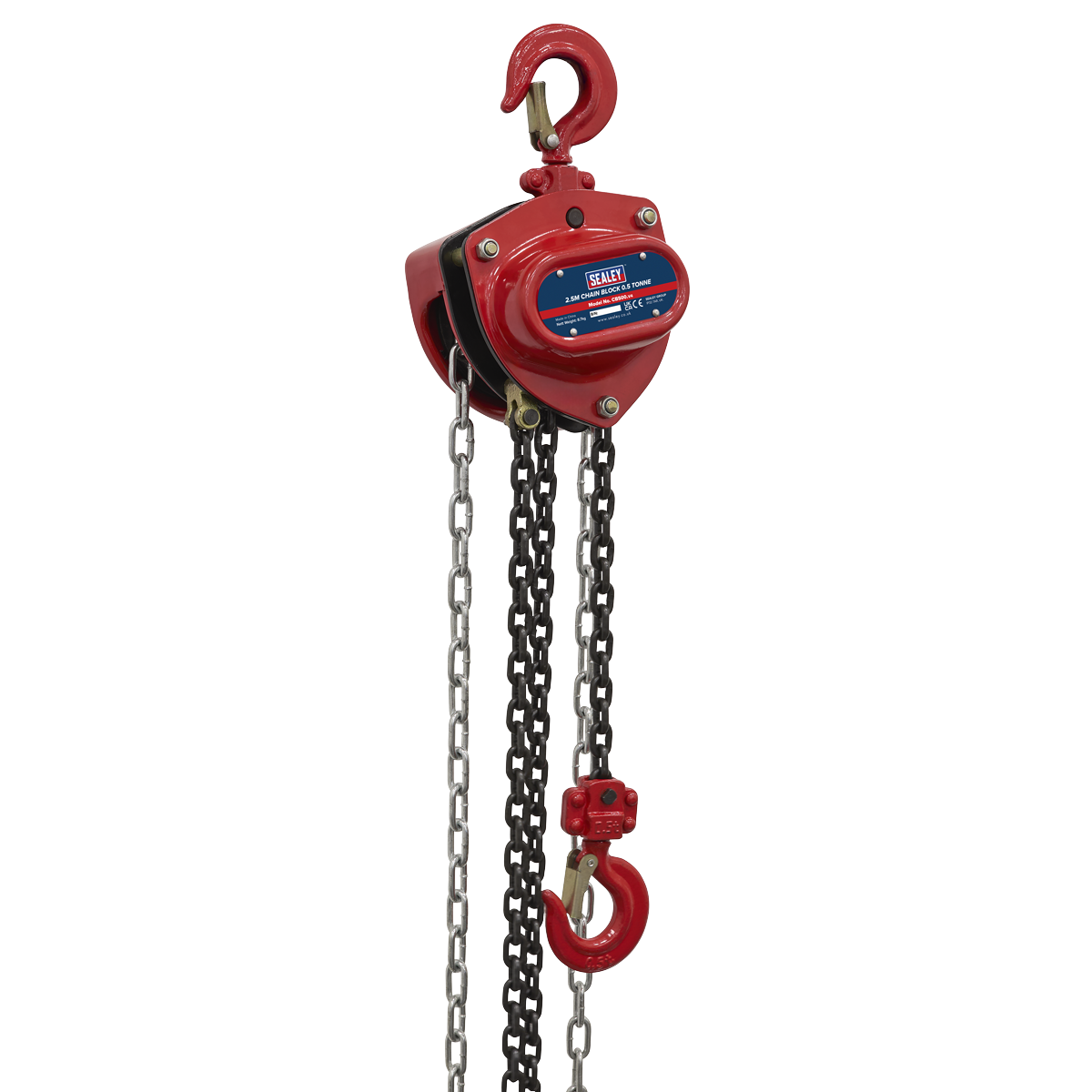

Sealey CB500 2.5m Chain Block 0.5 Tonne

Fitted with heat treated and ground, triple-spur geared shaft and pinion. Includes a double pawl and spring mechanical load brake for extra safety. All chains are manufactured from hardened alloy material. Larger opening, forged steel load hooks feature safety latches. Compact gear housing allows use where headroom is limited.

• HEAVY-DUTY GEARING - Fitted with heat treated and ground, triple-spur geared shaft and pinion.
• LOAD BRAKE - Includes a double pawl and spring mechanical load brake for extra safety.
• HARDENED CHAINS - All chains are manufactured from hardened alloy material

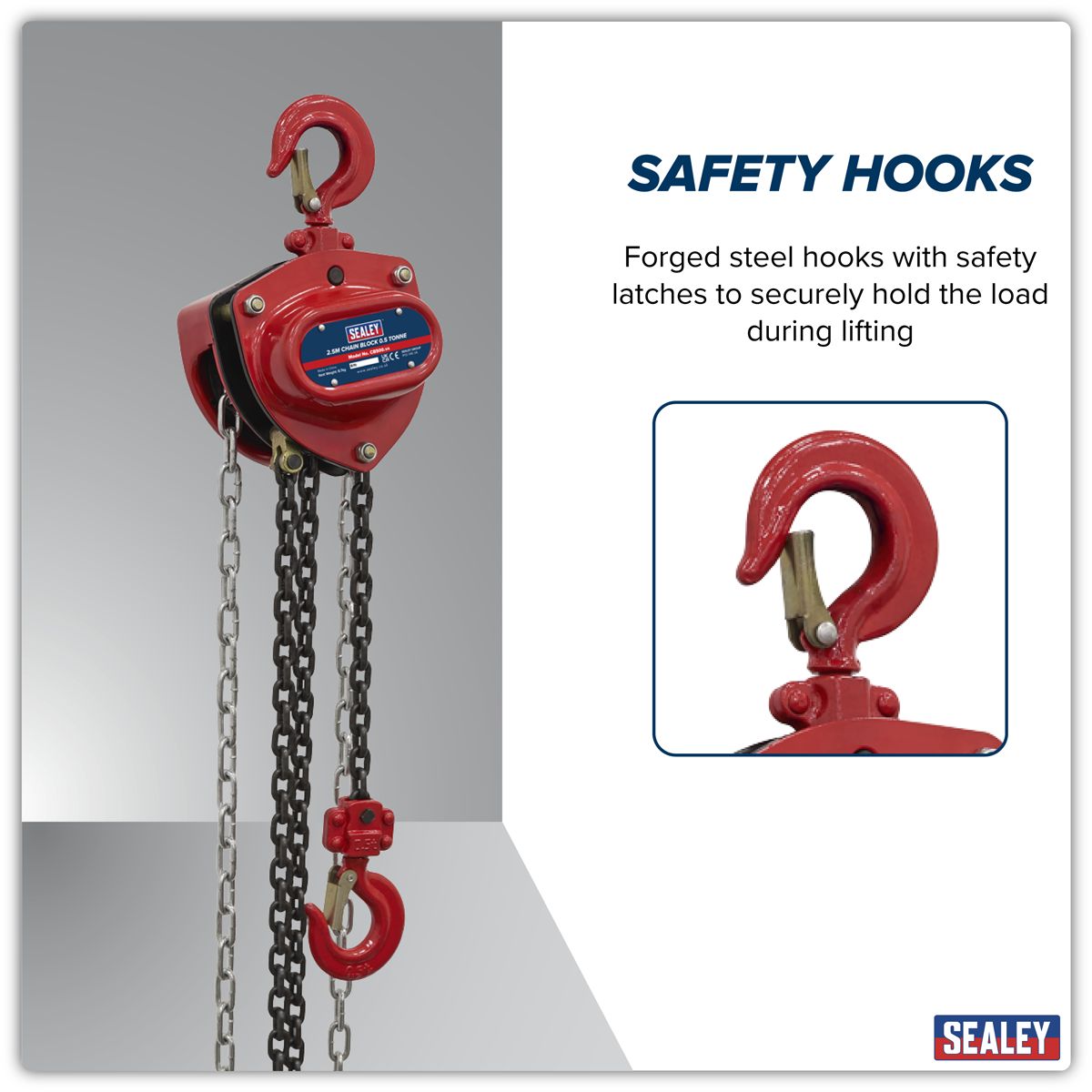

• SAFETY HOOKS - Larger opening, forged steel load hooks feature safety latches.
• REDUCED SIZE GEAR HOUSING - Compact gear housing allows use where headroom is limited.

Specifications

Model No	CB500
Brand:	Sealey
Capacity:	500kg
Head Room:	350mm
Hook Aperture:	25mm
Load Chain Diameter:	Ø5mm
Maximum Hook Capacity Ø:	35mm
Nett Weight:	8.7kg
Pulling Effort:	249N
Safe Working Load:	500kg
Size (W x D):	N/A
Standard Lift:	2.5m
Test Load:	750kg
